Set Assembly Constraints on all the part models to make them work with the Assembly Interface.
Parts with the assembly constraints get assembled on the manifold.
Open the part/assembly model of valve in Inventor.
MDTools 785 ribbon > Assembly panel > Set Assembly Constraints

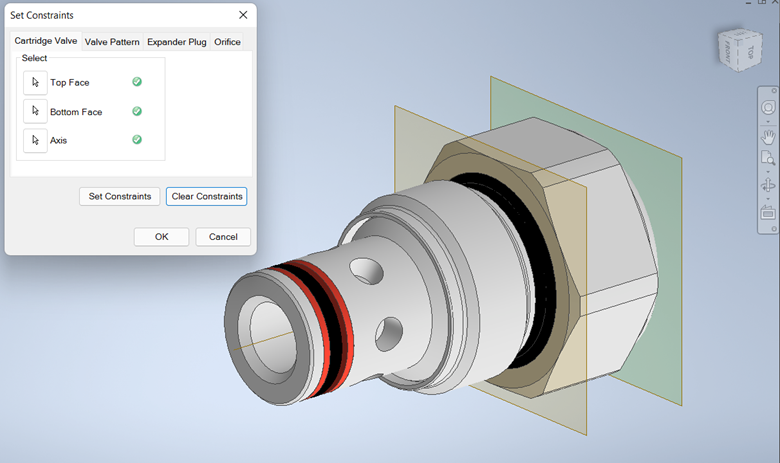

The Set Constraints dialog box displays.
The Set Constraints dialog box contains the following tabs.
