      MDTools 765 What's New
  Slot   Improved Check commands
  Preview while inserting and editing a Slot   Check Wall Thickness around Undercuts and Slots
  Make Connections using Slot   Undercuts and Slots are included during Design Checks
  Add Slot to inclined Cavities   False alerts for Sun Cavities eliminated
  Manage Slot Machining Sequence   False alerts for Connections eliminated
      Clearance within Net reported in a Separate section
  Undercut
  Preview while Inserting and Editing an Undercut   Miscellaneous
  Preview Mandatory Undercuts   Rename a Net from MDTools browser
  Create Concentric Optional Undercuts   Move Slot within Parent Cavity
  Undercut Net Information Assigned/Updated Automatically   Control Text Height of Miscellaneous Charts in a Drawing
  Manage Undercut Machining Sequence   GUI made Compatible for Window’s 125% Scaling
      Show Trailing Zeros for Diameter in Machining chart
  Machining Calllout
  Create Machining Callouts for Slots and Undercuts

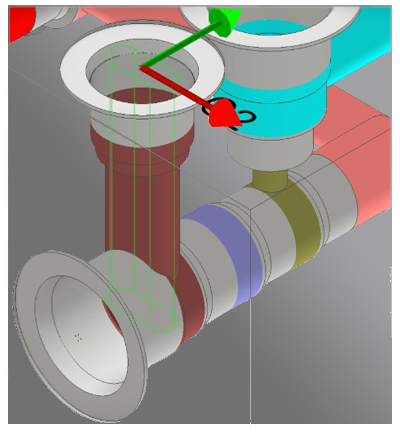

Preview while inserting and editing a slot
* Changing dimension and orientation
automatically updates the slot preview

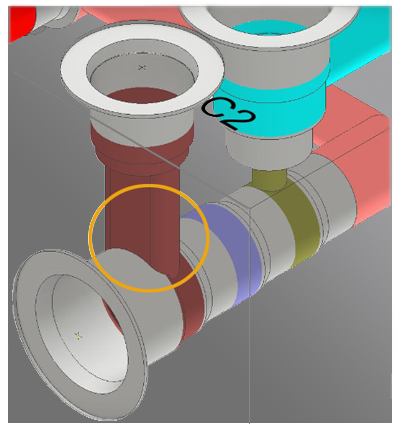

Make Connections using Slot
* Orientation automatically selected per connecting cavity

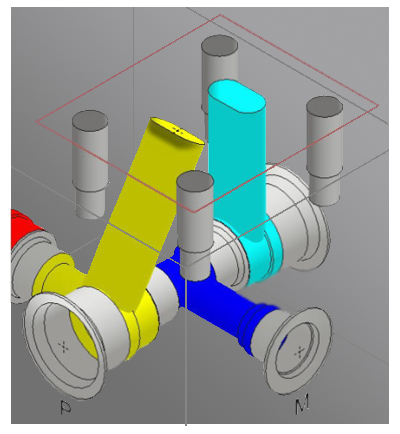

Add Slot to Inclined Cavities
* For inclined cavity, Connect Slot to option is disabled

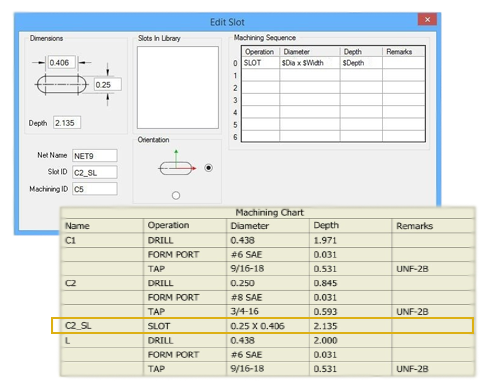

Manage Slot Machining sequence

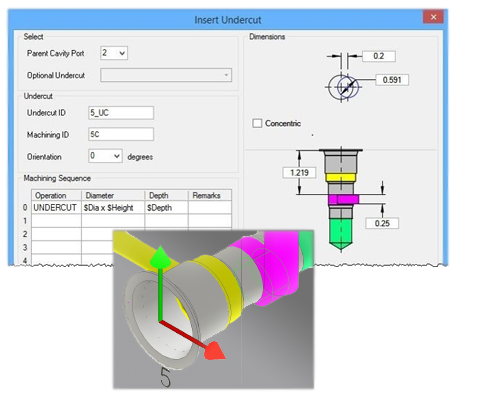

Preview Undercut in
dialog box and model

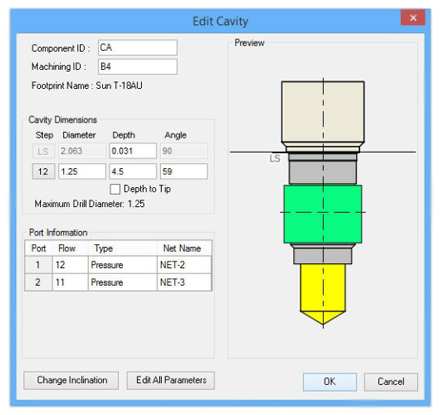

Preview Mandatory Undercuts

*All mandatory undercuts displays in cavity cross-sectional preview.

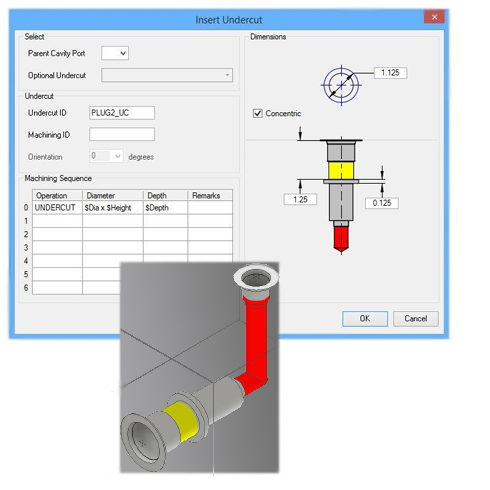

Create Optional Concentric Undercuts

*Concentric undercuts can only be created in
dead area of the parent cavity.

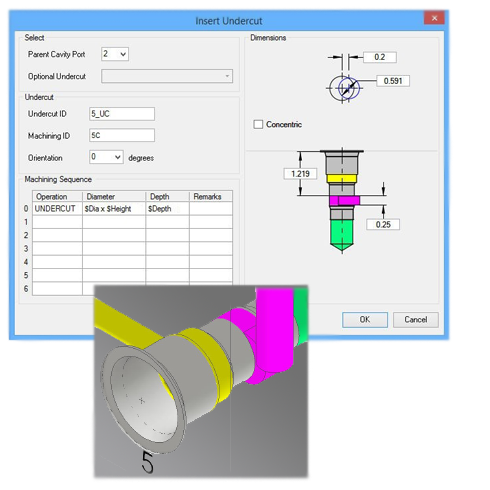

Undercut's Net information Assigned/Updated automatically

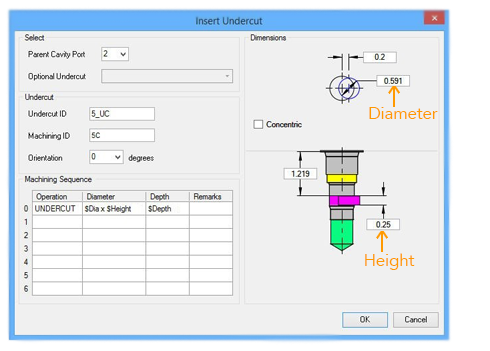

Manage Undercut Machining sequence

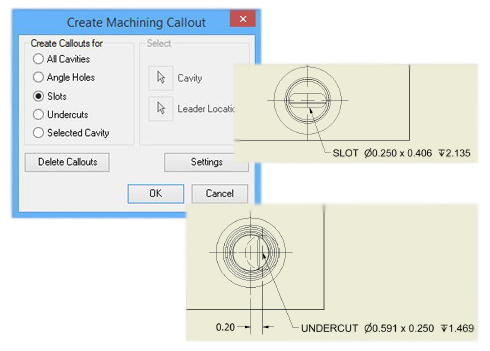

Create Machining Callouts
for Slots/Undercuts

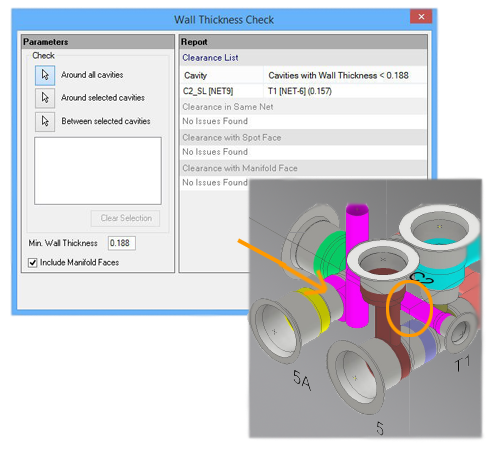

Check Wall Thickness
around Undercuts and Slots






Undercuts and Slots
included in design checks

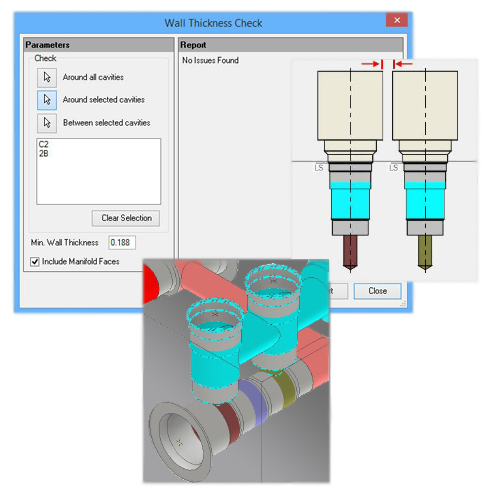

False alerts for Sun cavities eliminated

*Phantom wall thickness above manifold surface ignored

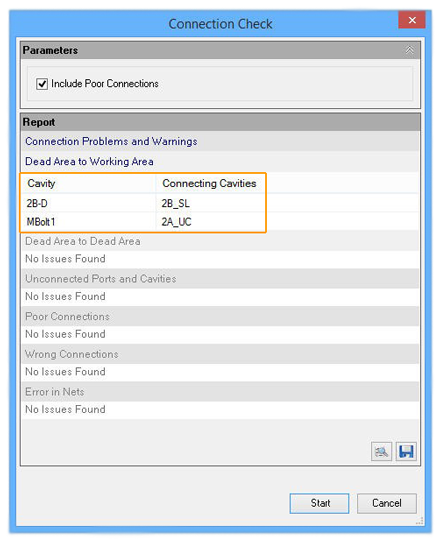

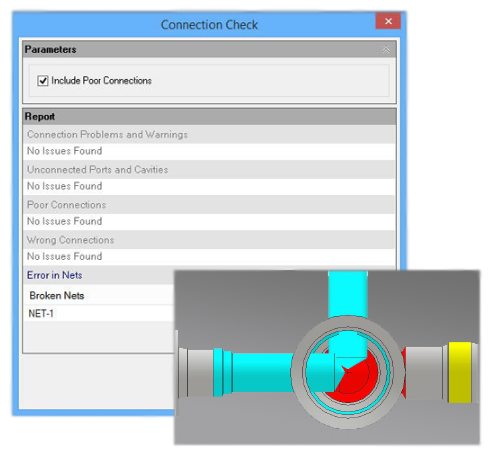

False alerts for connections eliminated

*Phantom poor connection in void area ignored

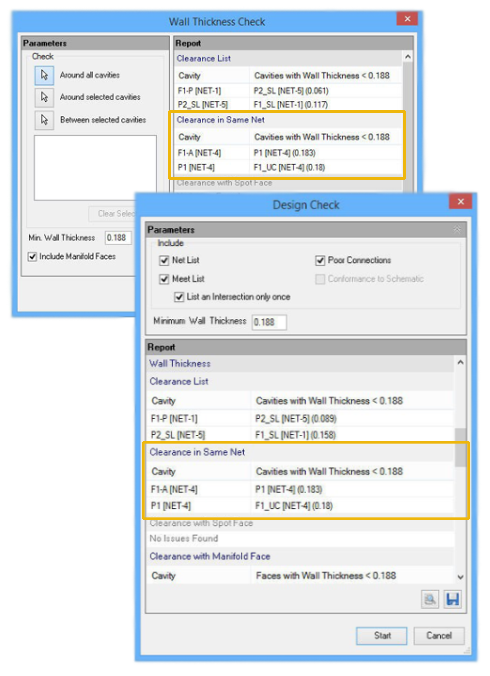

Clearance issues within same Net
are listed separately

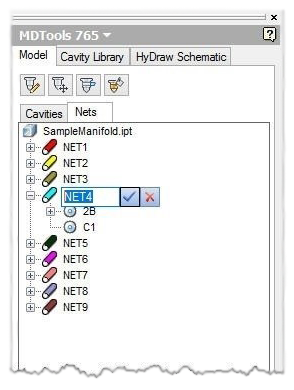

Rename a Net from MDTools browser

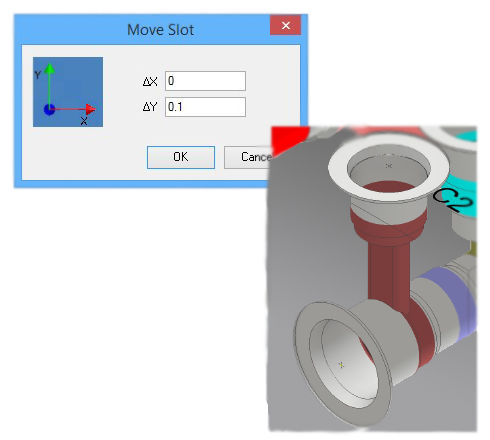

Move a Slot within Parent Cavity

Copy Slot with Cavity

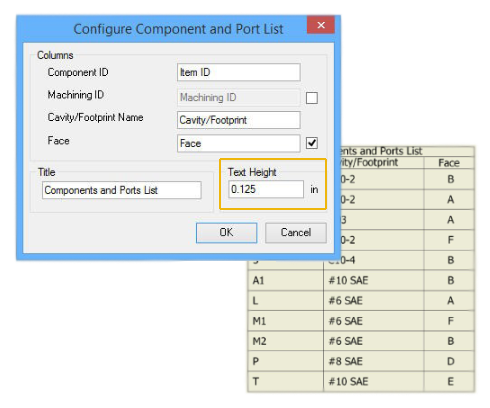

Control Text height of
miscellaneous Charts in a Drawing

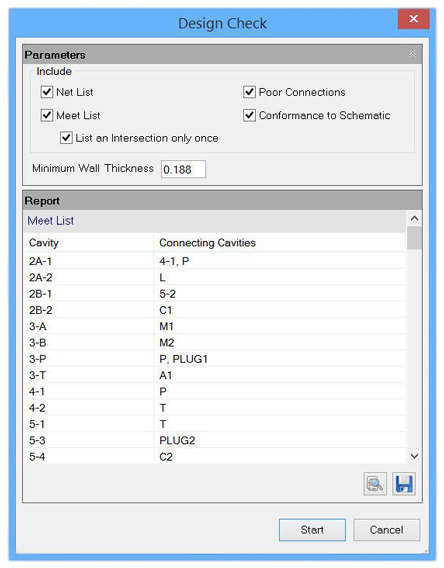

GUI made compatible
for Window's 125% scaling

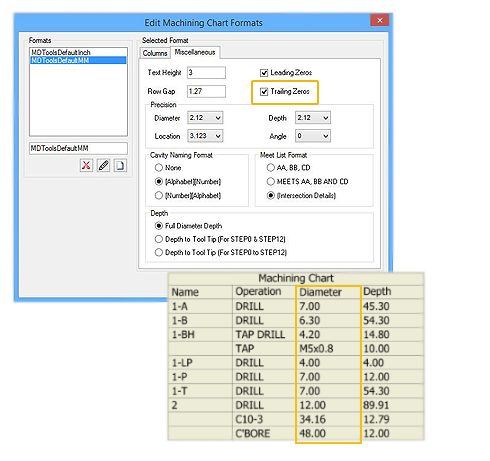

Show trailing Zeros for Diameter
