Model Cavities

ModelingCavity

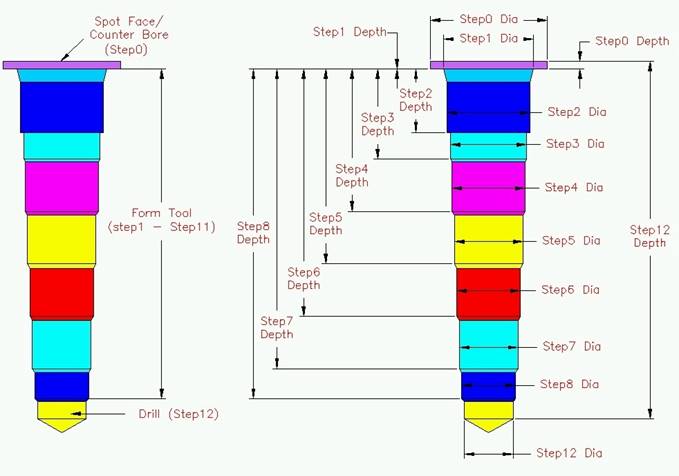

Geometry of a cavity is defined in terms of its dimensions, and its relationship with the step number and step dimensions.

Each step, which consists of cylindrical and/or a conical pair, in the cavity profile is denoted by the term ‘Step’ in MDTools.

Step information is analogous to a drill tool, which has the drill diameter, drill depth, and bottom cone angle of the drill.



Note:

Depth for Step1 through Step11 is measured from Step0.
