Check Bend

Check the design for quality of intersection for Energy Efficient connections. For bend and stretched connections, it recommends depth to achieve smooth and trimmed connection.

1.     MDTools 975 > Check Bend

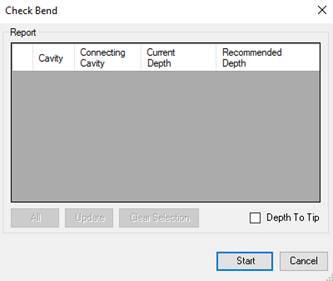

The Check Bend dialog box displays the cavity, connecting cavity, current depth, and recommended depth.

2.     Click Start.

3.     Select the check box for each cavity.

The selected cavity gets highlighted in the model.

4.     Click the All button to select all the affected cavities.

Note:

The All button turns None when all the items are selected.

5.     Select a row.

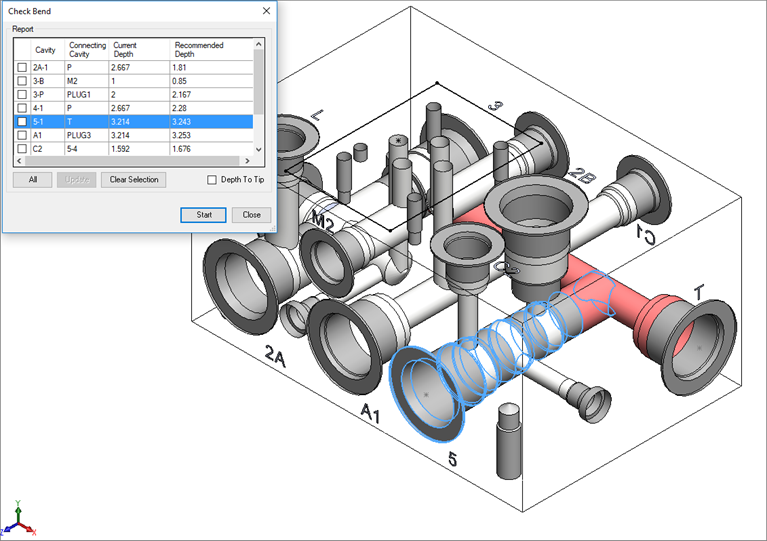

MDTools^® highlights the specified issues.

6.     Double click on row selection to zoom into the issue.

MDTools automatically zooms into the problem area for selected row.

7.     Click the Clear Selection option to clear the highlighted issue.

8.     Click Update.

The recommended depth is applied to the current depth and the affected rows turns green.

Note:

Select Depth to Tip, to view the depth till the drill tool tip.
