Mark Construction Holes

Automatically mark the construction holes in the 2D drawing view.

MDTools 970 > Mark Construction Ports

MDTools^® marks the construction ports by creating a circle and a cross inside it.

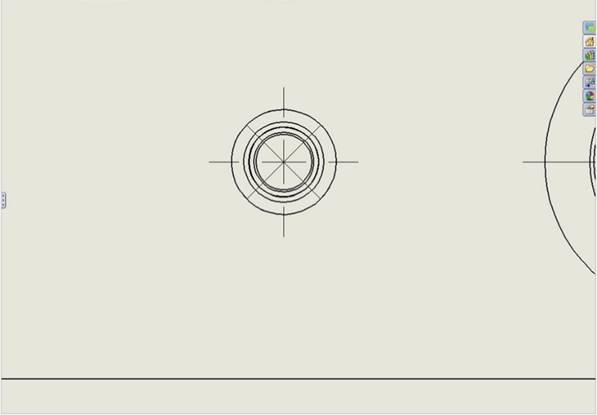

Construction holes marked in 2D drawing

Note:

If the construction plug is at an angle,
it is marked with an ellipse enclosing the cross.
