MDTools Drawing Options

Configure the various options and settings used by MDTools^® drawing commands to create machining drawing in the Part model environment.

1.     MDTools 970 > MDTools Drawing Options

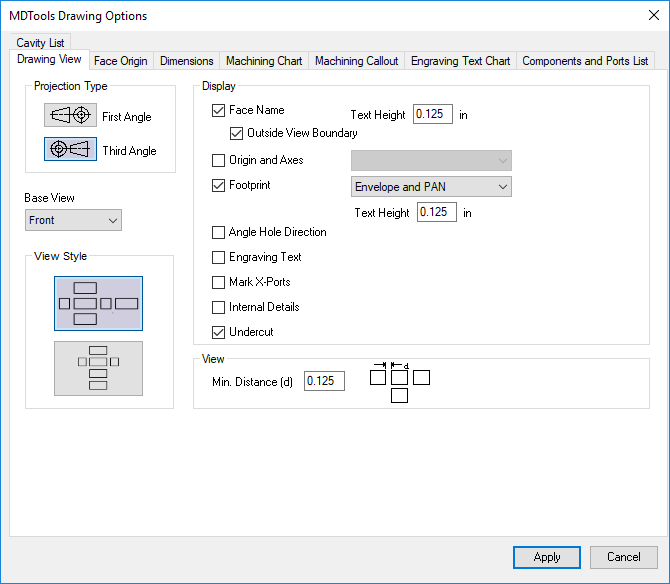

The MDTools Drawing Options dialog box displays.

2.     Specify various options, per requirement.

3.     Click Apply to save the changes.
