Shrink Wrap

Remove all the internal design details and create a separate block model without any connection detail.

1.     MDTools 965 > Shrink Wrap

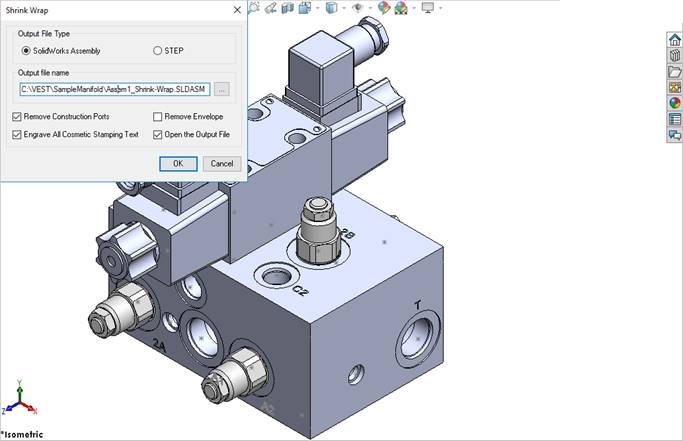

The Shrink-Wrap dialog box displays.

2.     Select output type. If you want to save output file as SolidWorks Assembly file (.sldasm), select option SolidWorks Assembly. if you want to save output as STEP (.step/.stp) file, select option STEP.

3.     Enter the output file name.

The output file is saved into a file with the given name.

4.      Select Remove Construction Ports to automatically remove the construction port information.

5.     Select Remove Envelope to automatically remove the envelope (Footprint or Assembly) information

6.     Select Engrave All Cosmetic Stamping Text to change all stampings into engraved stamping.

7.     Select Open the Output File to automatically open the output file.

8.     Click OK.

MDTools^® automatically removes all the internal design details.

If the Open the output file option is selected, then the output file is automatically opened in SOLIDWORKS.

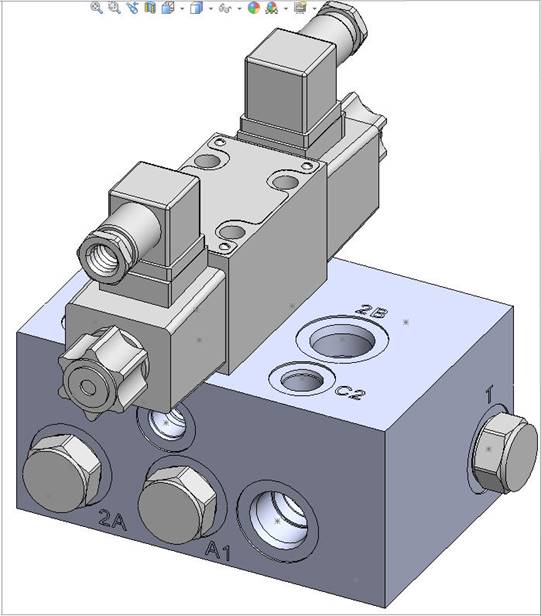

Internal details removed automatically
