Shrink Wrap

Remove all the internal design details and create a separate block model without any connection detail.

1.     MDTools 965 > Export/Import > Shrink Wrap

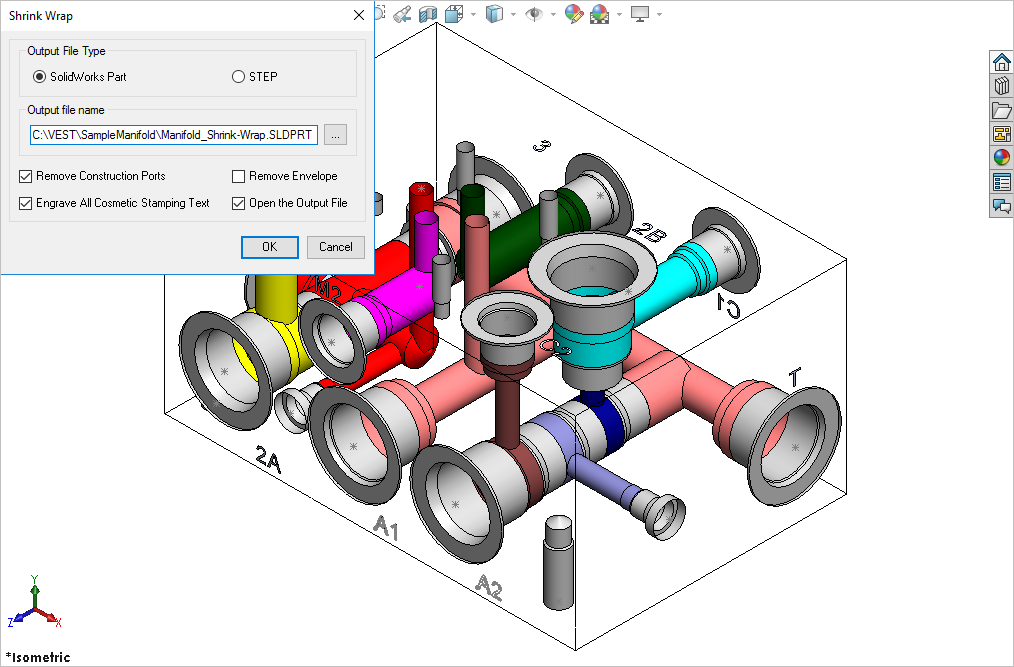

The Shrink-Wrap dialog box displays.

2.     Select output type.

To save output file as SolidWorks part file (.sldprt), select option, SolidWorks Part.

3.     Enter the output file name.

The output file is saved into a file with the given name.

4.     Select Remove Construction Ports to automatically remove the construction port information.

5.     Select Remove Envelope to automatically remove the envelope (Footprint or Assembly) information

6.     Select Engrave all cosmetic engraving text to change all cosmetic engraving into non-cosmetic engraving text.

7.     Select Open the Output File to automatically open the output file.

8.     Click OK.

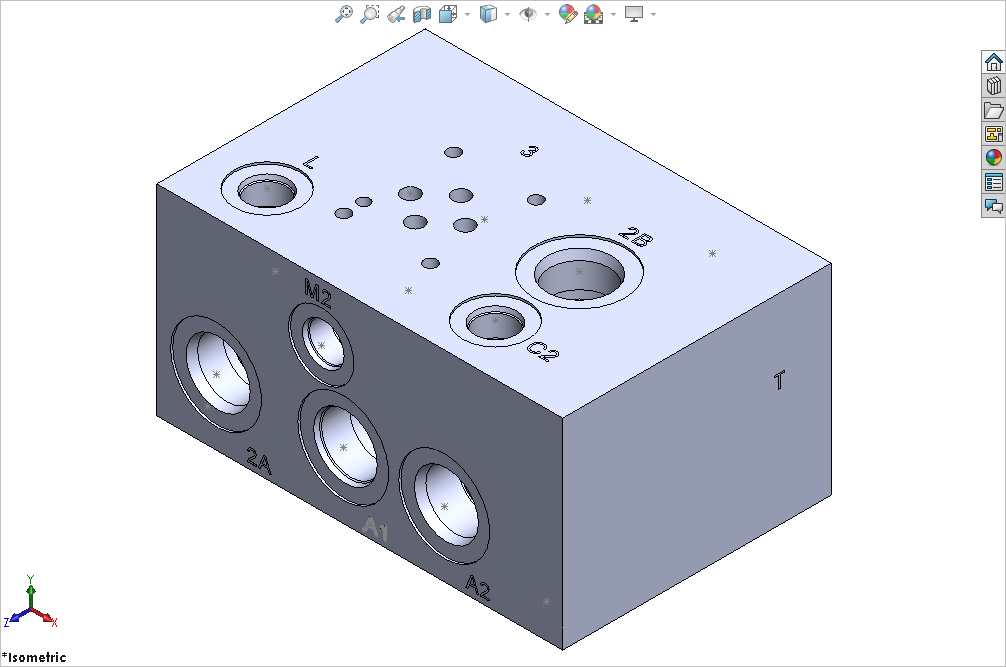

MDTools^® automatically removes all the internal details below the specified depth.

If the Open the output file option is selected, then the output file is automatically opened in SolidWorks.

Note:

Shrink wrap now also works for Non-rectangular manifolds.
