Show Undercut

Automatically displays the top view of undercuts as circle in 2D drawing.

MDTools 965 > Undercut

MDTools^® displays the Top View of undercuts as circle in 2D drawing.

Top View of undercut in view

Note:

·       Undercuts are placed on a separate layer.

·       The Create views command displays the top view of undercut while creating the drawing views. This is possible if the Undercut option is checked in the Drawing view page of MDTools Drawing Options.

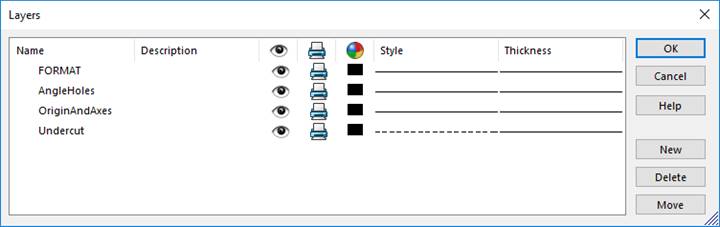

View Undercut Layer in Layers Properties dialog box

Undercut in MDTools Drawing Options
