Show/Hide Internal Details

Automatically display or hide the internal details of the drawing views created using MDTools^®.

1.     MDTools 965 > Show/Hide Internal Details

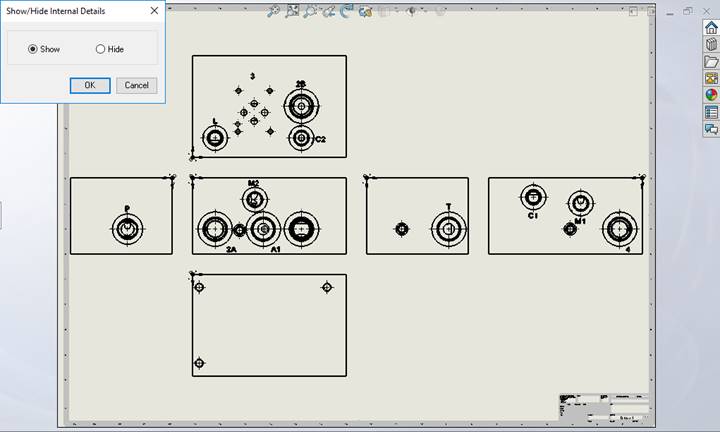

The Show/Hide Internal Details dialog box displays.

2.      Select the Show option to display the internal details of the drawing views.
or
Select the Hide option to hide the internal details of the drawing views.

3.     Click OK.

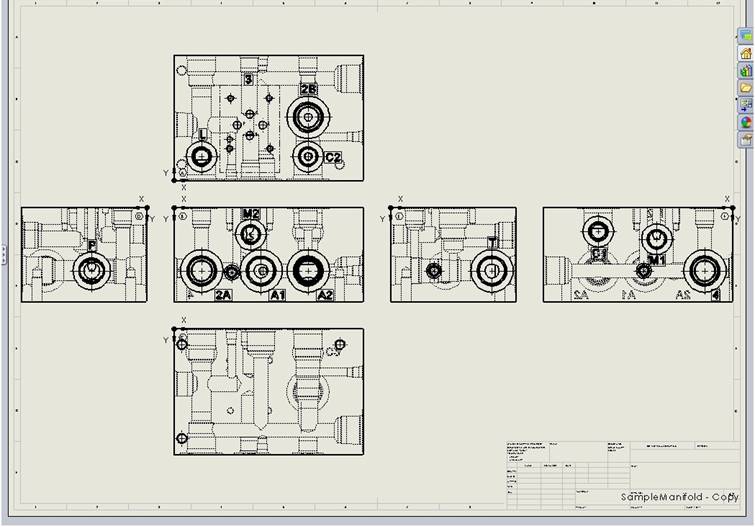

MDTools automatically displays/hides the internal view details for all the MDTools created drawing views.

Note:

·       If the part document is modified, then the changes will not be reflected automatically.
Re-run the program to update the hidden view details.

·       An additional part document will be created with the same name as the part document name suffixed with “_Internal”.
Do Not Delete this File.
