Show Angle Holes

Automatically display the top view of angle holes in the 2D drawing views.
The Show direction of angle hole option enables you to display the direction of angle hole.

1.     MDTools 965 > Show Angle Holes

The Show Angle Holes dialog box displays.

2.     Select Show direction of angle hole to display the direction of the angle hole.

The Show direction of angle hole option is selected by default.

3.     Click OK.

MDTools^® displays the top view of the angle holes in the 2D drawing views.

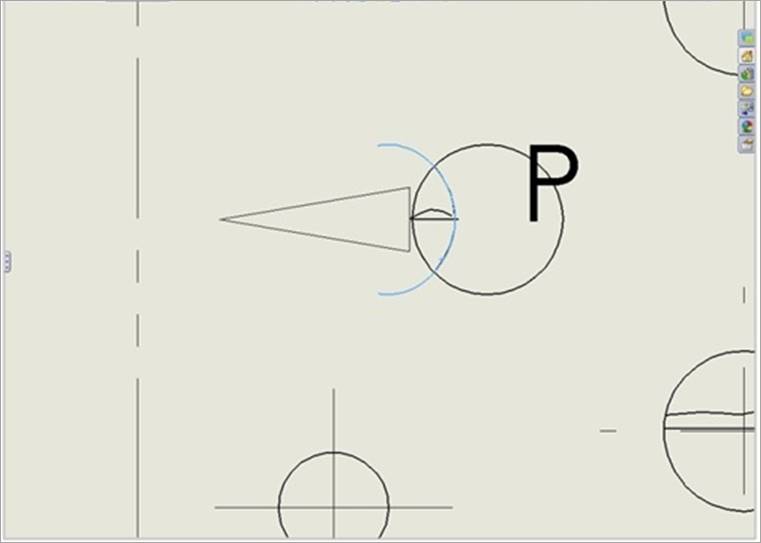

Angle holes displayed in 2D drawing
