Poor Connection

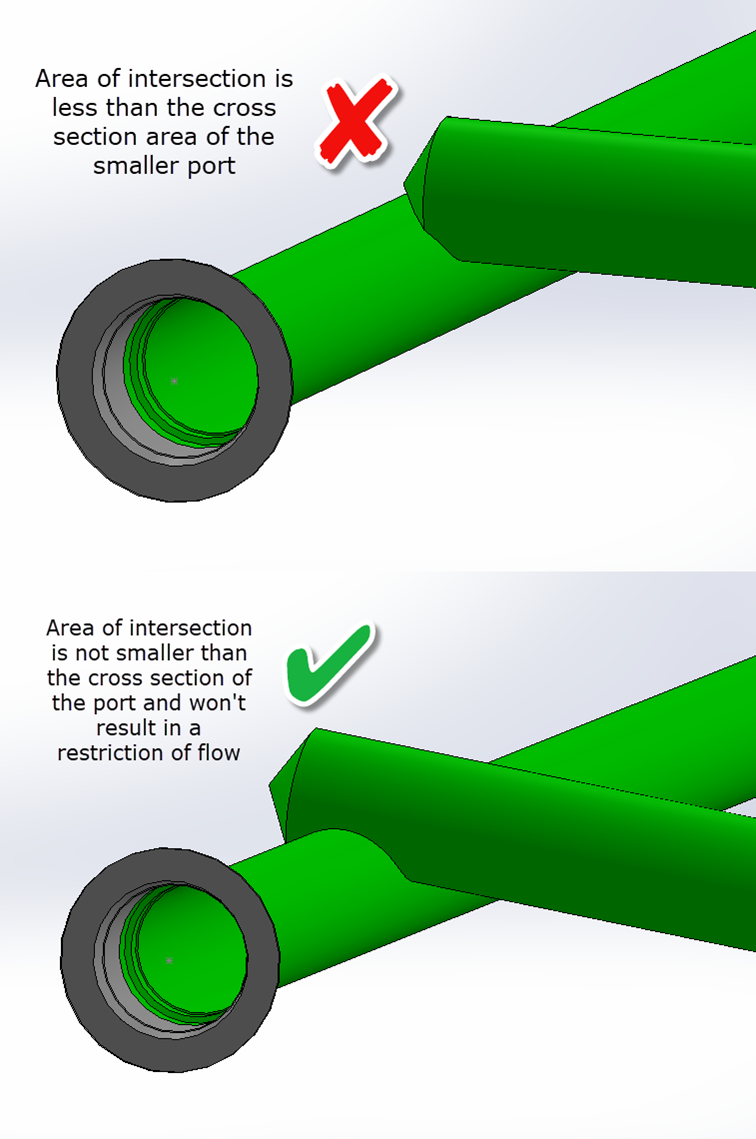

If the area of a connection is less than the area of the cross-section of the smaller diameter hole, then it is listed as a poor connection with the intersection size as a percentage of the size of the smaller drill cross-section.
