Net

Connections or flow passages made between ports of different cavities through which oil flows in the manifold.

·.     The entire network can be assumed to have effectively the same pressure, as there is nothing obstructing/changing the flow within the network.

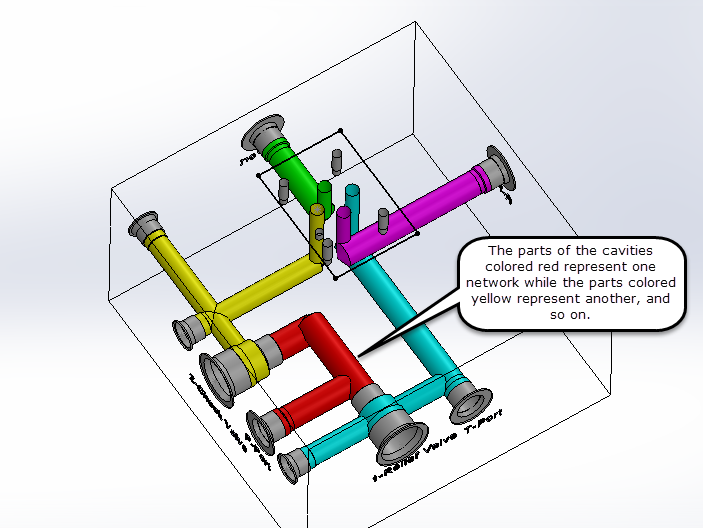

·.     Distinct colors are used to differentiate each net in the manifold design.

·.     Networks enable easy visualization and design of a manifold using a schematic drawing (to know which cavities to connect).
