Move Cavity

Precisely relocate a cavity by specifying the X and Y values from the face origin. You can also move the cavity by entering displacement values (delta X and delta Y).

1.     MDTools 965 > Move

The MDTools Select Cavity dialog box displays.

2.     Select a cavity on the manifold.

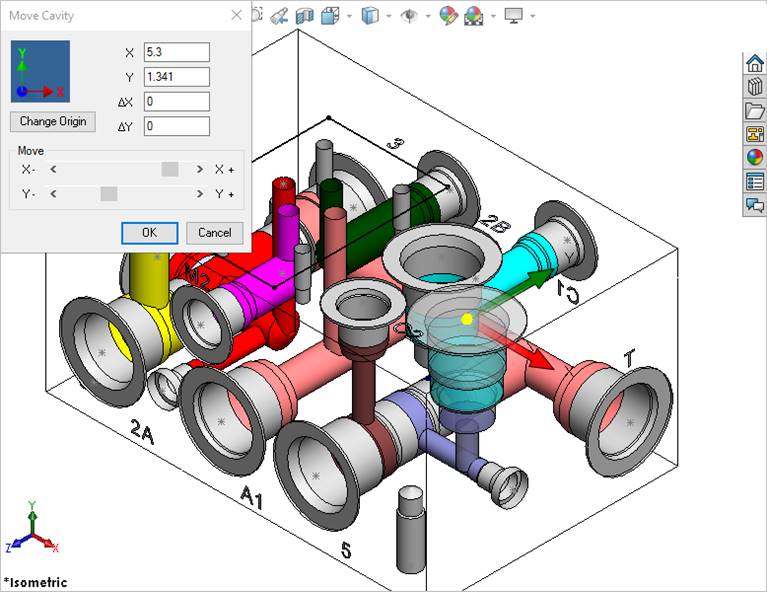

The Move Cavity dialog box displays.

MDTools^® displays the origin indicator on the manifold face.

Current X and Y values of the cavity location from the face origin are displayed in the dialog box.
