Measure Wall Thickness

Measure the wall thickness between two cavities or measure the wall thickness between a cavity and a manifold surface.

1.     MDTools 965 > Check Wall Thickness > Measure Wall Thickness

The Measure Wall Thickness dialog box displays.

2.     Click the First Surface button.

3.     Select the first surface.

4.     Click the Second Surface button.

5.     Select the second surface.

MDTools^® displays the minimum distance between the selected surfaces on the dialog box.

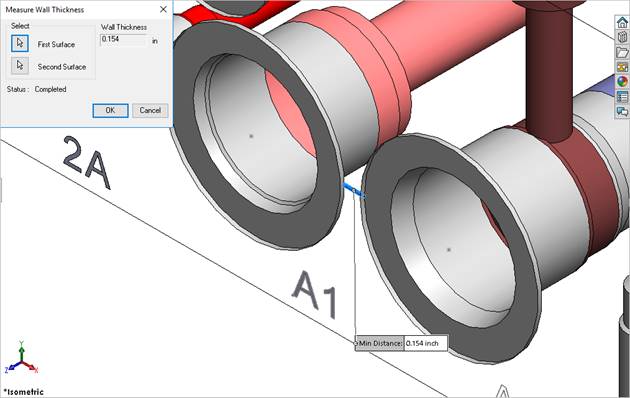

Display of the wall thickness between two surfaces

Note:

·       The surfaces selected can be any one of the planar surface, cylindrical surface, or conical surface.

·       The command automatically computes the surface type and evaluates distance only if the surface is one of the three surface types.
