Match Properties

Match the properties of two or more cavities. You can match drill diameter, drill depth, drill tip angle, spot face/LS depth, cavity inclination (Alpha and Beta), net name, and cavity machining information.

1.     MDTools 965 > Match Properties

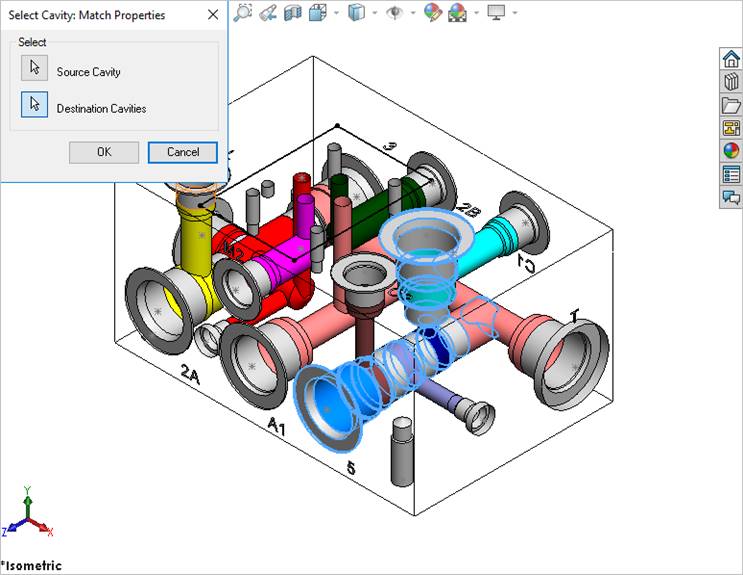

The Select Cavity Match Properties dialog box displays.

2.     Select the source cavity.

3.     Select the destination cavities.

4.     Click OK.

5.     Select properties you want to match.

6.     Click OK.

MDTools^® updates the selected properties of destination cavities with that of source cavities.
