Manage Colors

Toggle the nets (flow paths) color display between ‘on’ or ‘off’. You can also change the color of nets inside the manifold.

MDTools 965 > Net Display

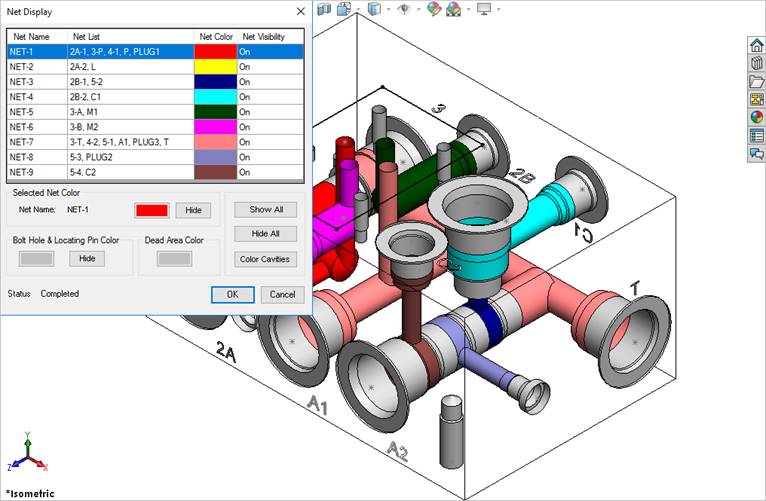

The Net Display dialog box displays.

MDTools^® automatically assigns default colors for all the nets.
Net visibility shows the ‘on’ or ‘off’ status of the net.
