Machining Chart

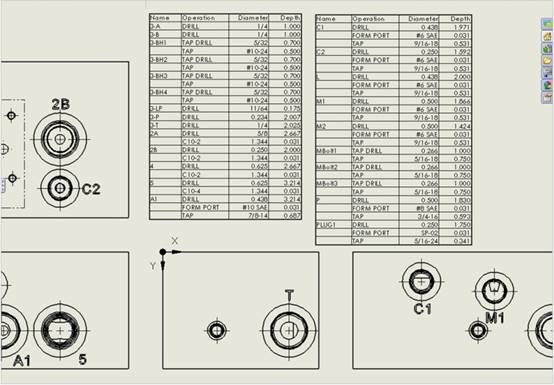

Once the design of a manifold is complete and checked, the machining chart of the design can be automatically extracted from the manifold and inserted into the 2D Machining drawing.

The Machining Chart command enables you to automatically extract the machining data from all the cavities and create the machining chart.
