Insert Component Outline

Create the outline of a valve assembly around the selected cavities/footprints.

1.     MDTools 965 > Outline

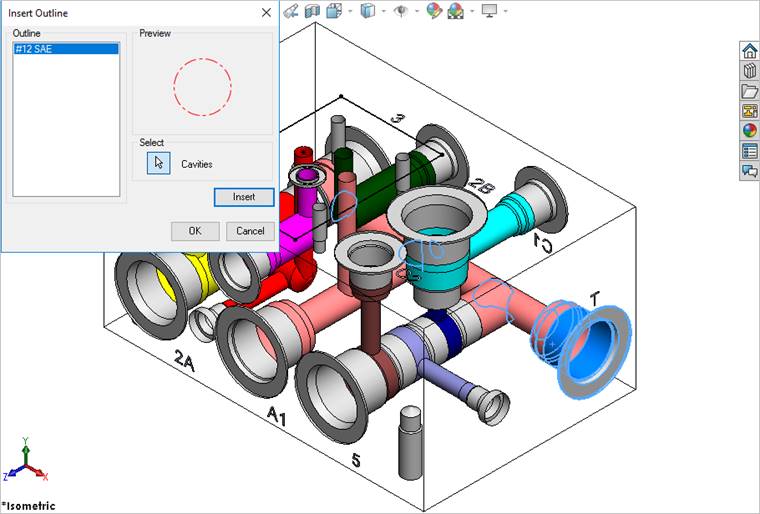

The Insert Outline dialog box displays.

2.     Select the outline from the list.

MDTools^® displays a preview of the selected component outline.

3.     Select the Cavities option.

When you move the cursor over a cavity, it gets highlighted. This indicates the selected cavity.

4.     Click Insert.

MDTools automatically creates a component outline around the selected cavities.

5.     Click OK.

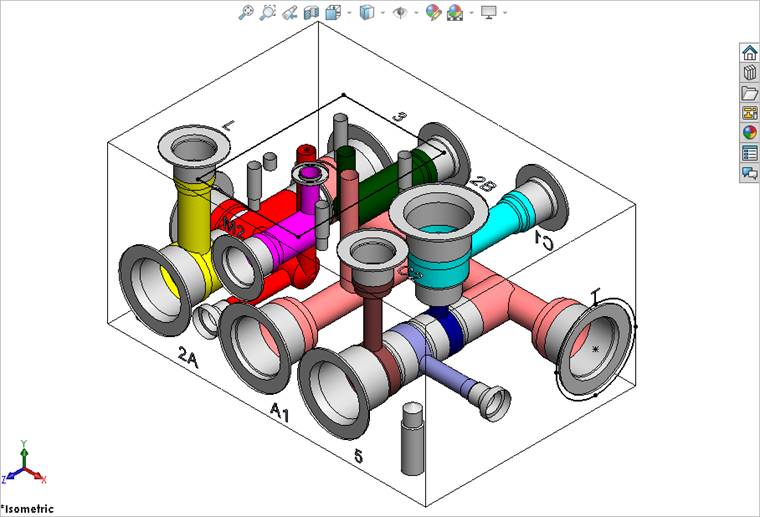

Component outline created on the selected cavities

Note:

Use the MDTools Library Manager 2016 program to create the Component Outline library.
