Display Cavity ID

Display the cavity ID at the center of a cavity. This enables you to easily identify the cavity on the manifold. You can show or hide cavity IDs of cavities on selected faces or the cavity ID of a selected cavity.

1.     MDTools 965 > Cavity ID

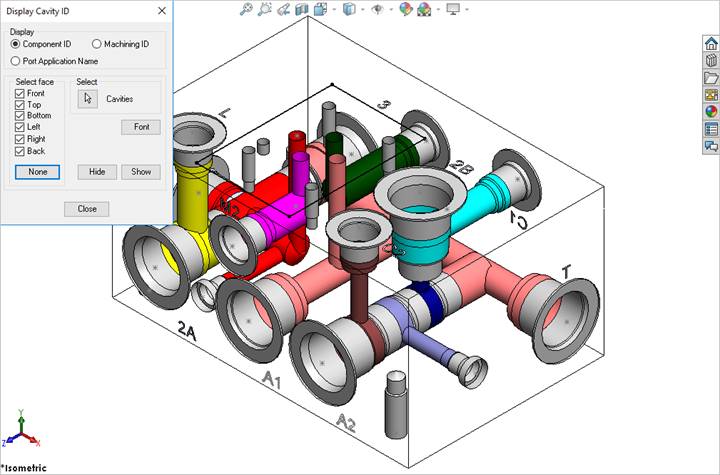

The Display Cavity ID dialog box displays.

2.     Select the display option.

Component ID is selected by default.

3.     Select the faces.

Front and Top faces are selected by default.
Select the All option to display the cavity IDs of all the cavities on the manifold.

4.     Select the Show or Hide option.

The Show option is selected by default. Select the Hide option to hide the cavity ID.

5.     Click Font to change the font style.

The Font dialog box displays with default styles.

Font       Arial
Style      Regular
Size       16
Color     Black

6.     Change the font properties, if required.

7.     Click OK.

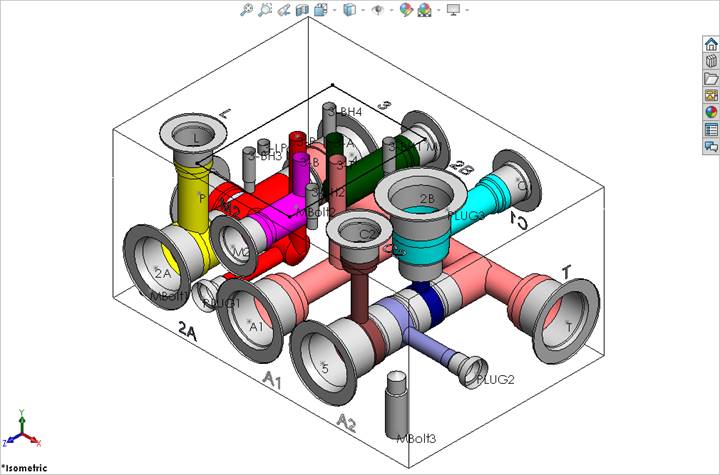

MDTools^® displays the cavity ID on the cavity center.
