Delete Component Outline

Delete a component outline around the selected cavities/footprints that are created using MDTools^®.

1.     MDTools 965 > Delete > Delete Outline

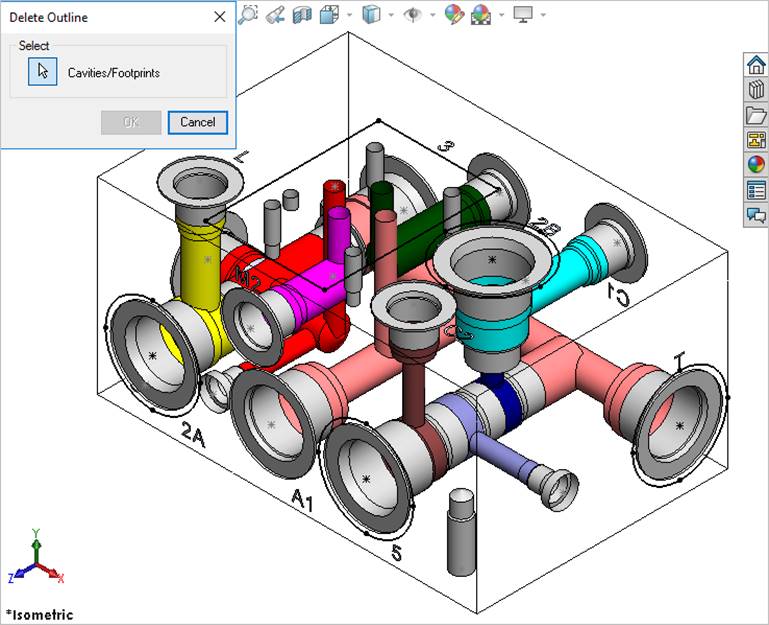

The Delete Outline dialog box displays.

2.     Select the cavities/footprints from which you want to delete the component outline.

3.     Click OK.

MDTools automatically deletes the component outline around the selected cavities/footprints.

Component Outline automatically deleted
