Create Meet List

Check connectivity inside the manifold.
Easily find dead area intersections inside the block. For example, using this feature you can easily locate holes cutting outside the port area of a cartridge valve cavity.

1.     MDTools 965 > Create Meet List

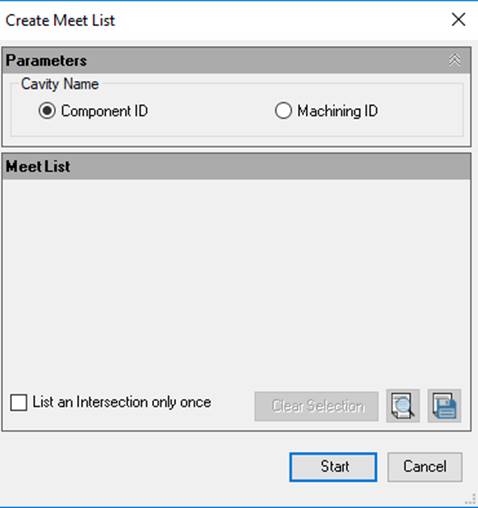

The Create Meet List dialog box displays.

2.     Select Component ID or Machining ID as the preferred ID display name for the cavities.

3.     Select the List an Intersection only once option to remove the repetitive information from the report.

4.     Click Start to create the Meet List.

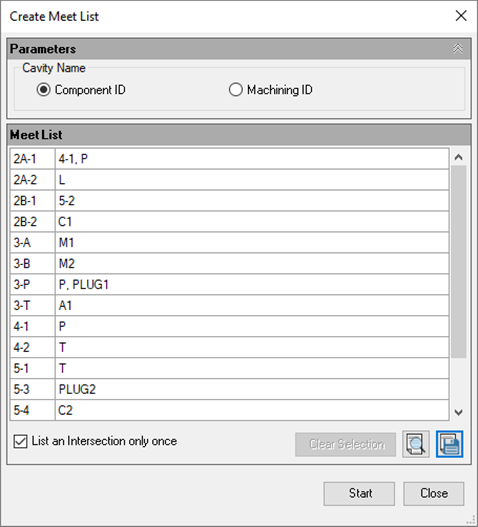

MDTools^® checks the internal connectivity and displays the list of connecting cavities.
All the cavities in the manifold are grayed out.

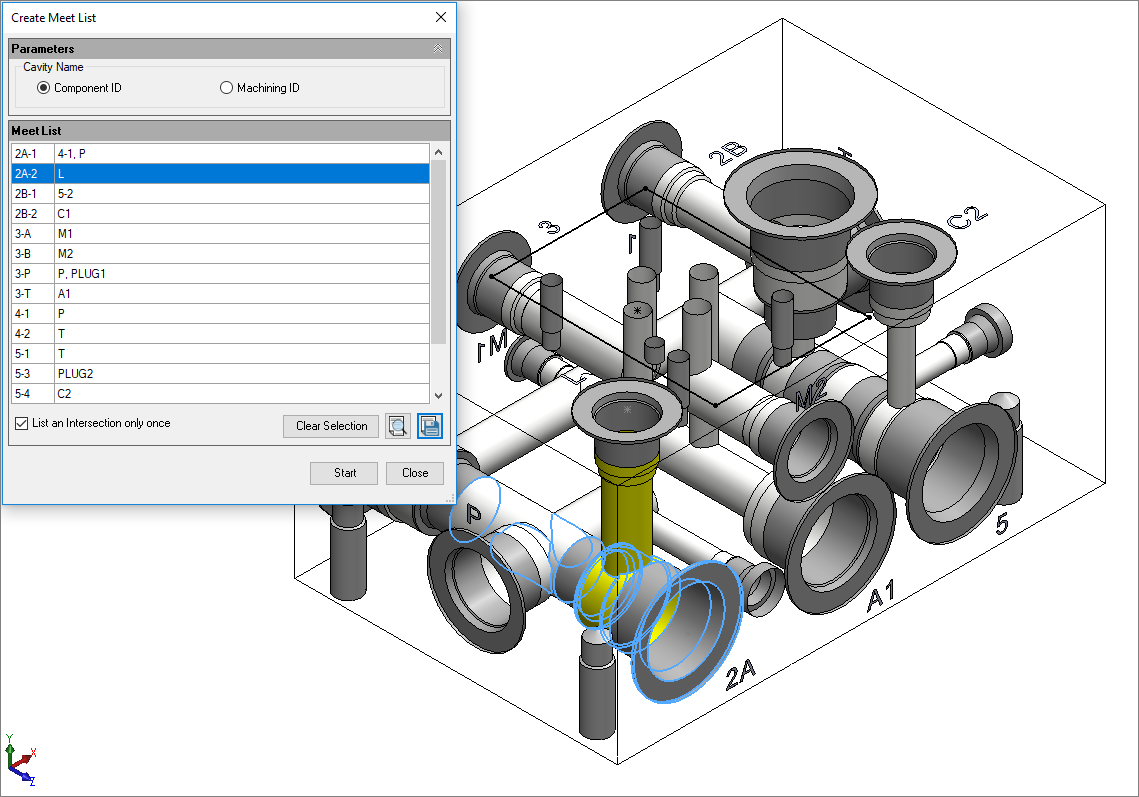

5.     Select a row.

MDTools highlights the cavity in first column and colored cavity in the other column of specified issues.

Displays Meet List issue on a single click

6.     Double-click on row selection to zoom into the issues.

MDTools automatically highlights the problem area for every section.

7.     Click on Clear Selection to clear the highlighted issues.

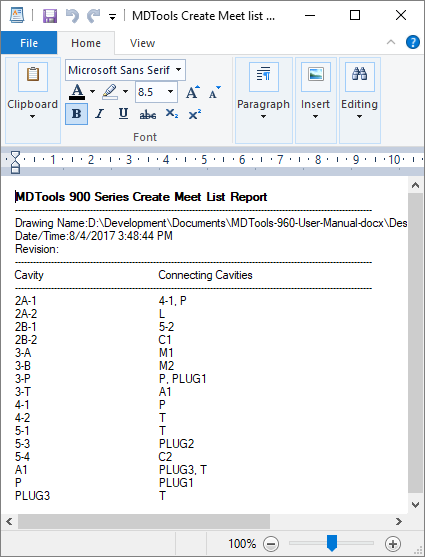

8.     Click  button to view and print the report in a text file.

9.     Click  to save the list as a text file.

10.  Enter an appropriate file name.

11.  Click Save.

Note:

·       The Connectivity check shows that cavities are meeting. But this alone does not assure the quality of connections.

·       Bottom port starting depth must be specified for all cartridge valve cavities.

·       If the bottom port depth is not specified, the area below the side port, just above the bottom port, will be considered as Dead Area.

·       Area below the spot face (Step0) will be considered as Working Area, if the insertion depth for port cavity is not entered.

·       Holes cutting outside the port area of cavity will be listed in the dead area connection list.
