Create Machining Callout for All Cavities

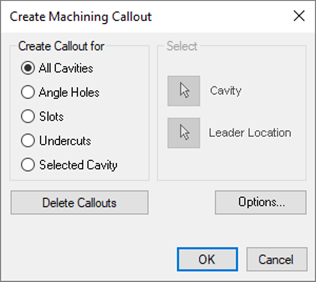

1.     Select All Cavities option.

2.     Click OK.

MDTools^® inserts the leader on all cavities consisting of machining detail and places the leader from the cavities center at an angle of 45 degrees.

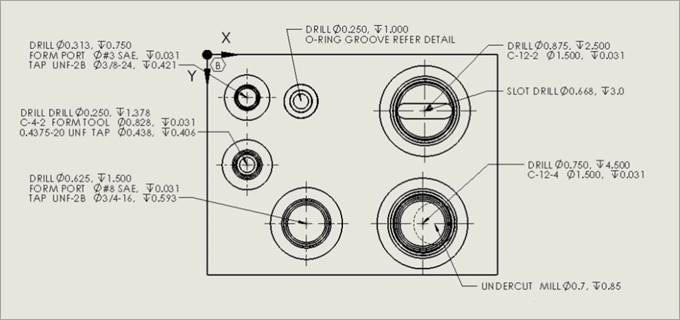

Machining Callout displayed for all the cavities in the 2D drawing
