Create Machining Callout

Automatically create leader-type cavity machining callout for all the cavities in the 2D drawing.
It automatically extracts the cavity machining detail from all the cavities and inserts with the leader on the cavities.
Position of existing machining callouts will be retained.

MDTools 965 > Machining Callout

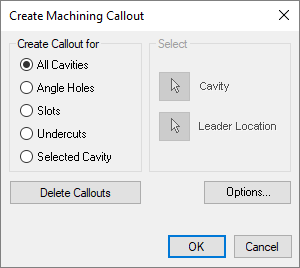

The Create Machining Callout dialog box displays.
