Create/Edit Engraving Text

Create client graphics text and represent text embossing on the manifold.

1.     MDTools 965 > Engraving Text

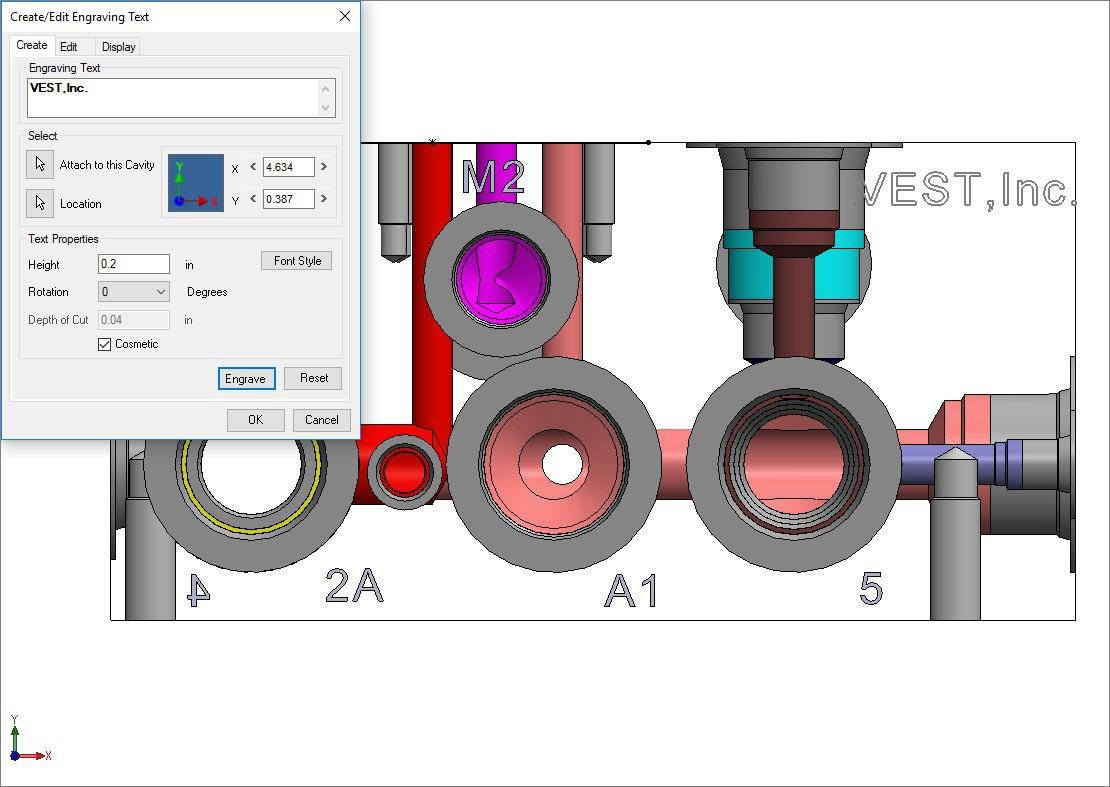

The Create/Edit Engraving Text dialog box displays.

2.     Select the cavity.

MDTools^® displays the component ID of the selected cavity as the default text.

You can change the Engraving text,
if required.

3.     Select the stamp location.

4.     Enter text Height.

5.     Select text Rotation.

The default text rotation is 0.

6.     Select Cosmetic option to create a sketch text feature, otherwise engraved text will be created.

7.     Click Stamp.

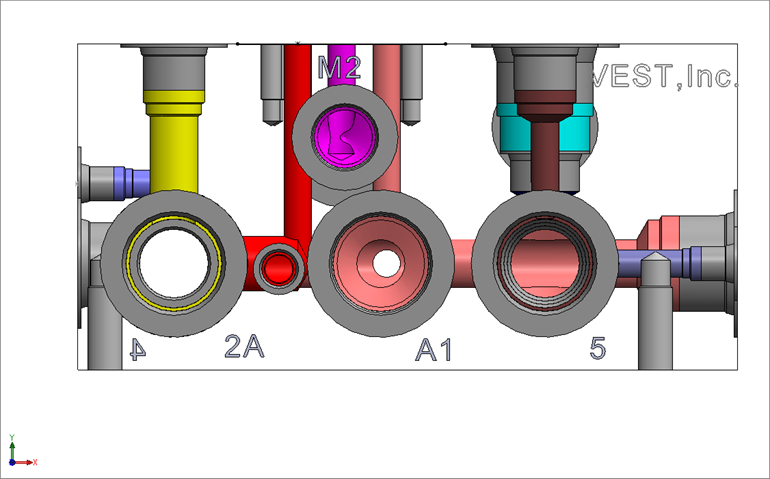

8.     Repeat the above steps to create all the Engraving text on the manifold.

Note:

When designing a manifold with a large number of cavities, it is recommended to use the ‘Create text only’ option.
