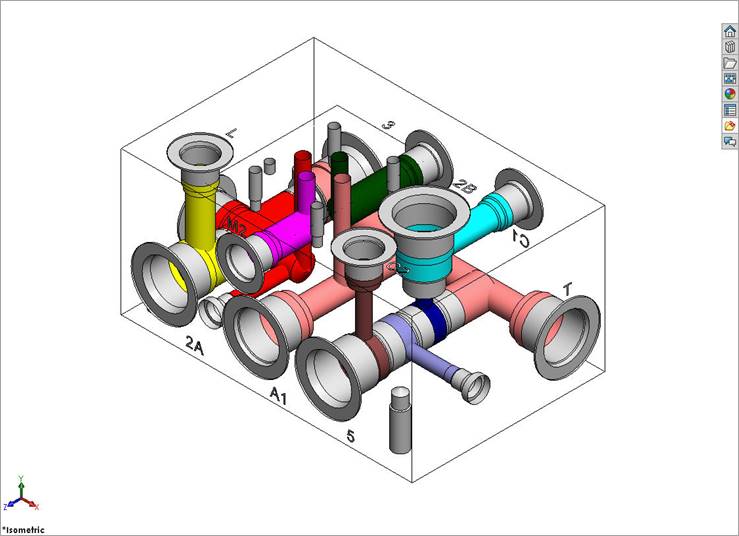

Convert Manifold

Convert a virtual cavity design into a feature-based block design and vice versa.
Virtual design mode executes commands faster than the Feature design mode.

MDTools 965 > Block > Convert

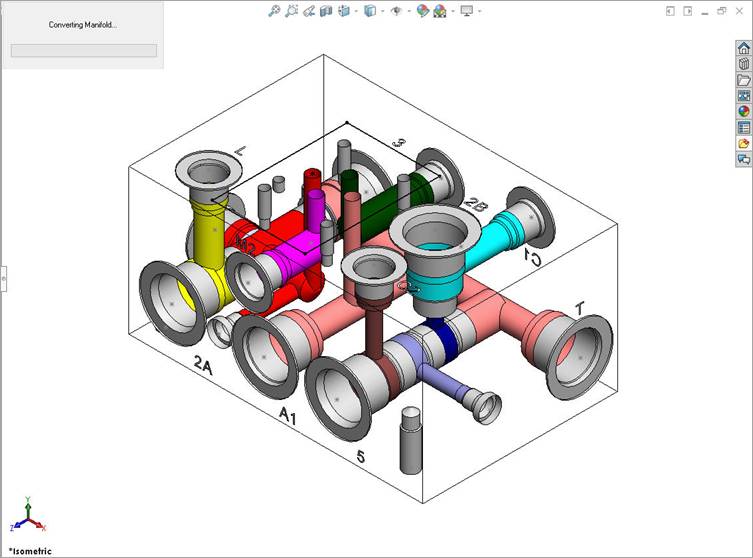

The Converting Manifold message displays.

Converting manifold

MDTools^® automatically converts:

·     A virtual cavity design into a feature-based design.

·     A feature-based design into a virtual cavity design.

Note:

·       Constrained cavities will be unconstrained when converting the manifold.

·       Attached stamping texts will be detached from the parent cavity after converting.

·       An O-ring groove inserted in the Virtual design mode is also converted to a feature.

Converted manifold
