Check Connection for Offset

Check the connection, which has three or more cartridge valve side ports for the offset. MDTools^® will list the connection where offset is recommended in the dialog box.

1.     MDTools 965 > Check Connection for Offset

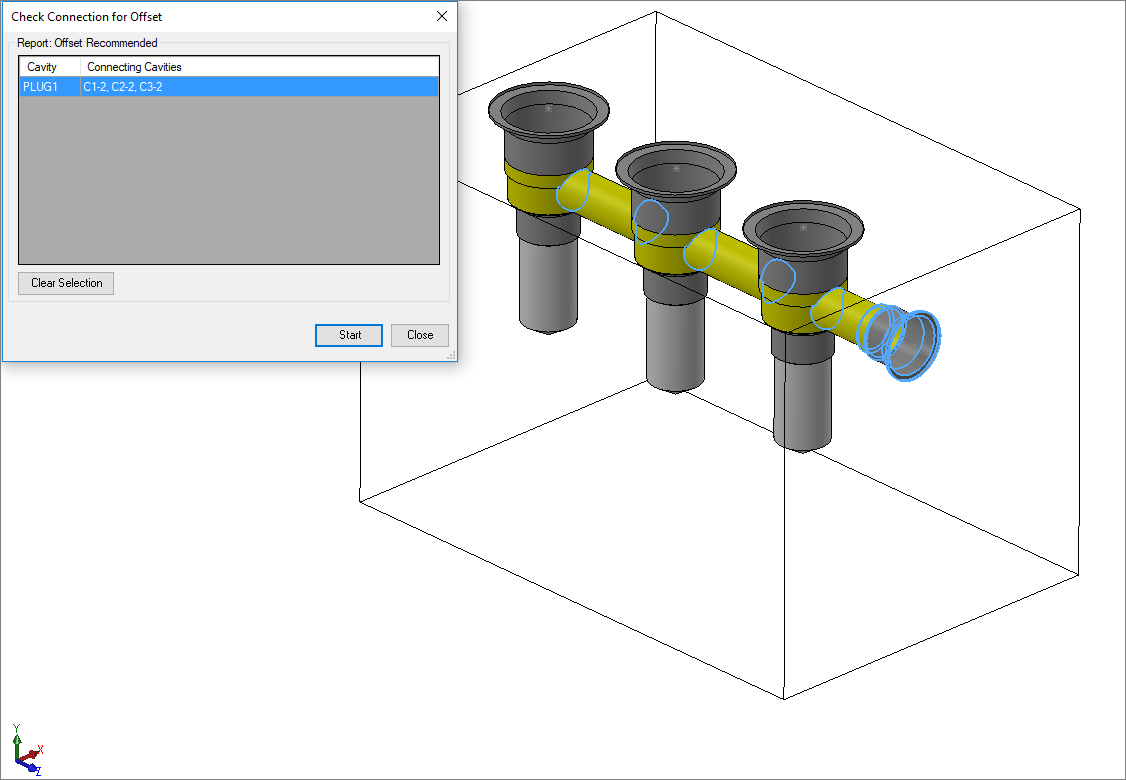

The Check Connection for Offset dialog box displays.

2.     Click Start for connection check.

MDTools checks manifold for the connection with 3 or more cartridge valve side ports.
All the cavities in the manifold are grayed out.

3.     Select a row.

MDTools highlights the specified issues.

4.     Double-click on row selection to zoom into the issues.

MDTools automatically zooms into the cavities for selected issues.

5.     Click the Clear Selection option to clear the highlighted issues.
