Change Face

Relocate a cavity/footprint from one face of a manifold to another manifold face.

1.     MDTools 965 > Change Face

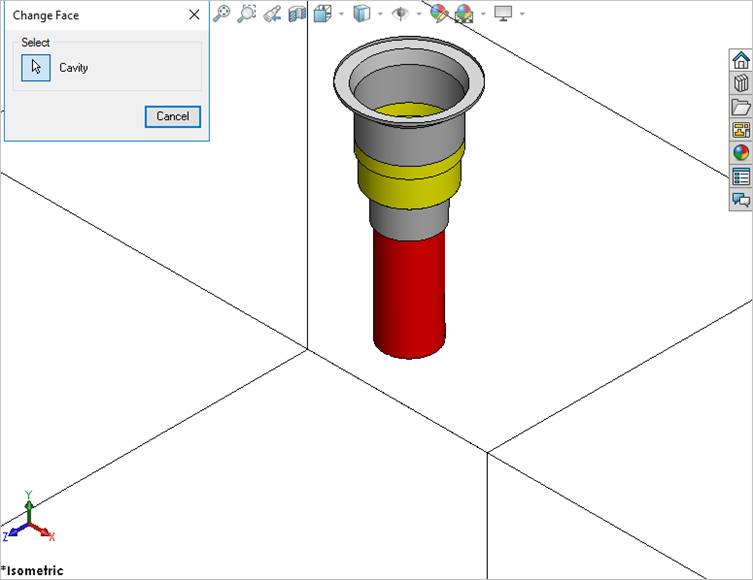

The Change Face dialog box displays.

2.     Select the cavity/footprint you want to relocate.

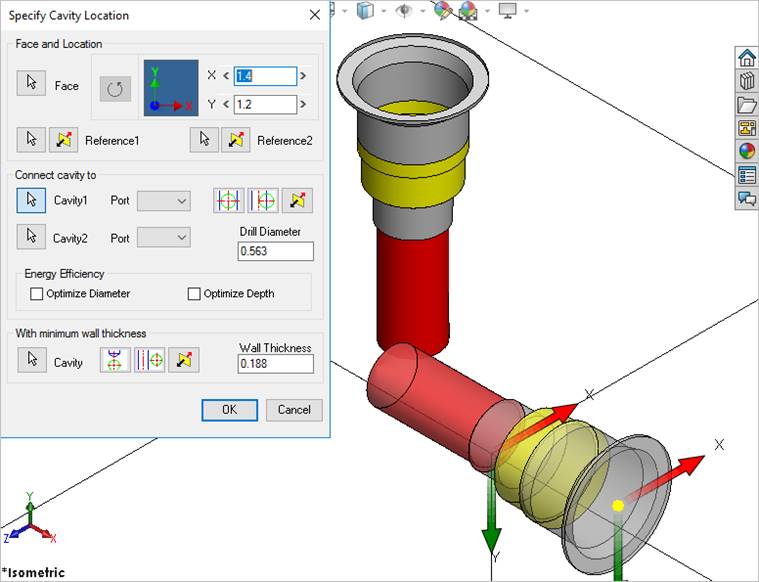

The Specify Cavity Location dialog box displays.

Note:

If you select a cavity in a footprint, then the complete footprint is relocated.

3.     Select the point on the manifold face, where you want to relocate the cavity and pick connecting cavities.

MDTools^® displays a preview of the selected cavity at the selected point on the manifold.

4.     Click OK.

MDTools relocates the cavity/footprint to the selected location on the manifold.

Note:

When you relocate a footprint using the Change Face command, the main cavity on the footprint is created at the selected location.
