Align Engraving Text

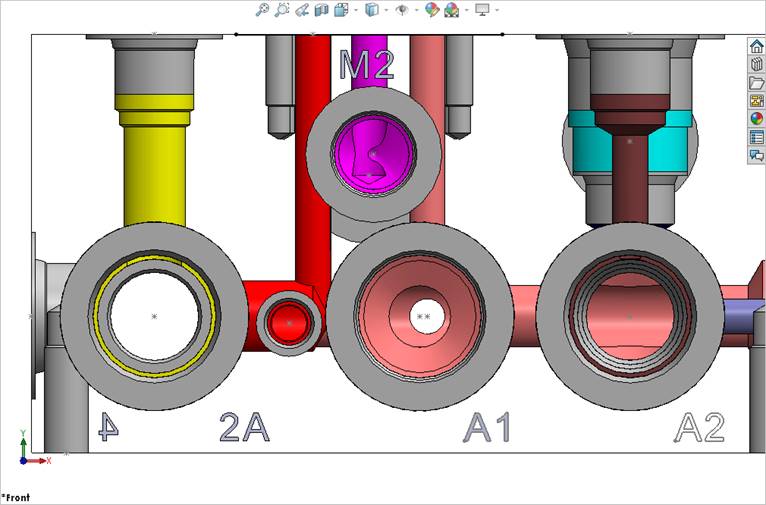

When you align two Engraving texts on the same face, the texts are aligned to the coordinate with the shortest distance.
When you align two texts on two perpendicular faces, the texts are aligned with reference to the common coordinate.

1.     MDTools 965 > Engraving Text > Align Engraving Text

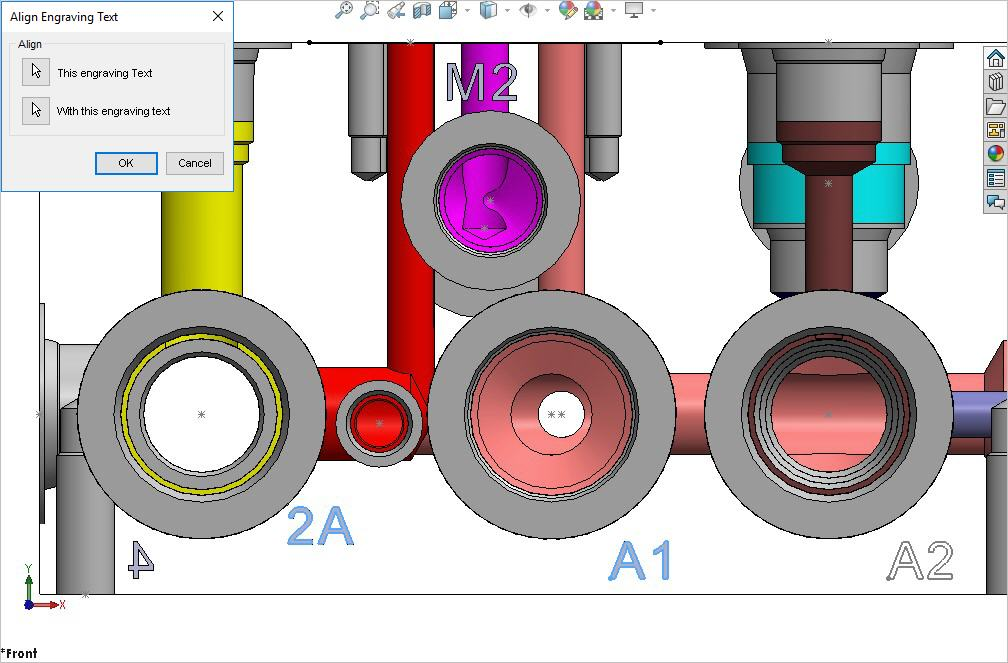

The Align Engraving Text dialog box displays.

2.     Select the Engraving text to be moved in order to align it with the other Engraving texts.

3.     Select the Engraving text along with the previously selected Engraving text to be aligned.

4.     Click OK to align the two selected texts.

Selected texts are aligned
