Align Cavities

Align two or multiple cavities on the manifold.
When you align two cavities on the same face, the cavities are aligned to the coordinate with the shortest distance.
When you align cavities on two perpendicular faces, the cavities are aligned with reference to the common coordinate.

1.     MDTools 965 > Align

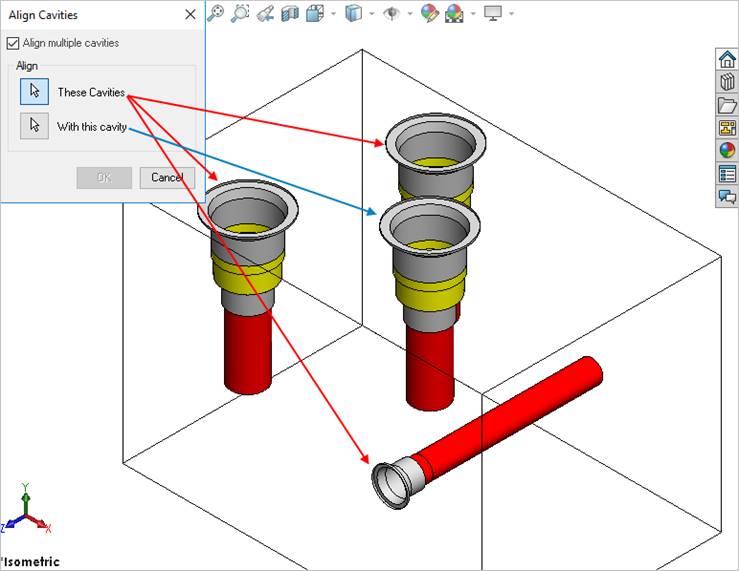

The Align Cavity dialog box displays.

2.     Select the Align multiple cavities option, if you want to align multiple cavities.

3.     Click These Cavities to move and align with another cavity.

4.     Click With this cavity to align the previously selected cavity(s).

MDTools^® shows a preview of the cavity to be aligned in the new aligned location.

5.     Click OK.

MDTools automatically relocates the first selected cavities to align with the Selected cavity.
