Add Counter Bore

Automatically add counter bore operation to an existing cavity.

1.     MDTools 965 > Add Drill > Add Counter Bore

The Select Cavity dialog box displays.

2.     Select the cavity in which you want to add the counter bore.

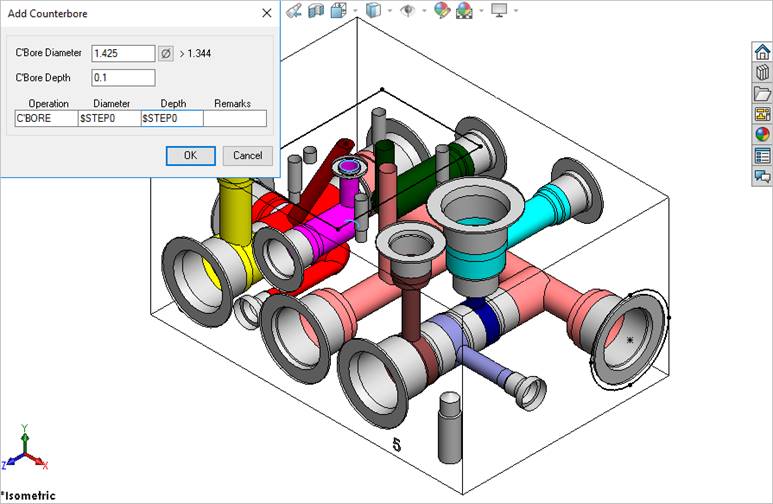

The Add Counterbore dialog box displays.

3.     Enter the counterbore diameter and depth.

4.     Change the machining details, if required.

5.     Click OK to add the counterbore to the selected cavity.

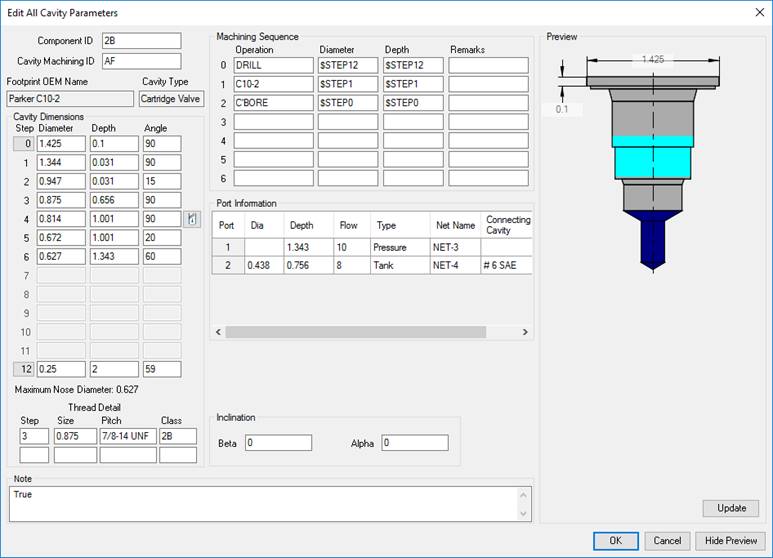

Cavity data after adding the counterbore

Note:

·       The Add Counter Bore command modifies the cavity geometric data and the machining data.

·       If a counterbore is added to a cartridge valve cavity, appropriate changes are also made to the port depth of the cavity.

·       To add a counterbore, at least one circle data should be available as a blank, else this command will not be able to add a counterbore.
