Export to MBXML

Export a manifold design and create an MDTools^® manifold MBXML file.

1.      MDTools 790 ribbon  >  Block panel  >  Slide out menu  >  Export to MBXML (Block Design)

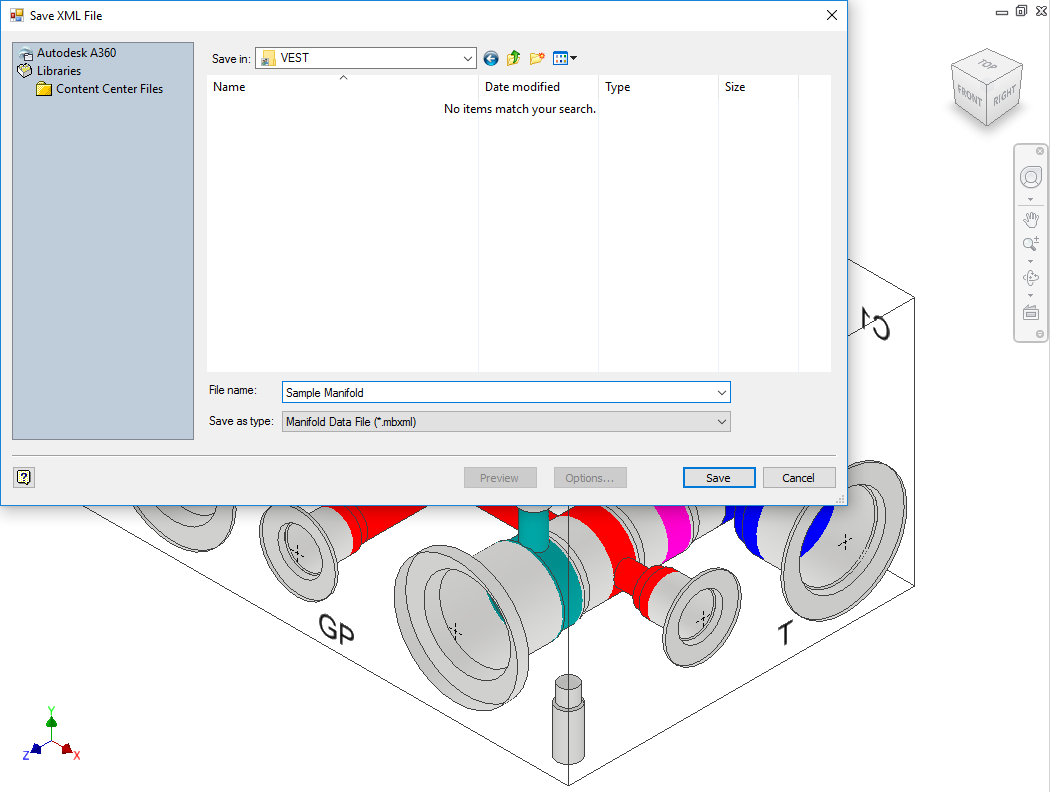

The Save XML File dialog box displays.

2.      Enter the file name.

3.      Click Save.

The program exports the manifold design into the MDTools manifold.mbxml file.

Note

Now, the functionality of exporting O-ring grooves is also supported in this command.
