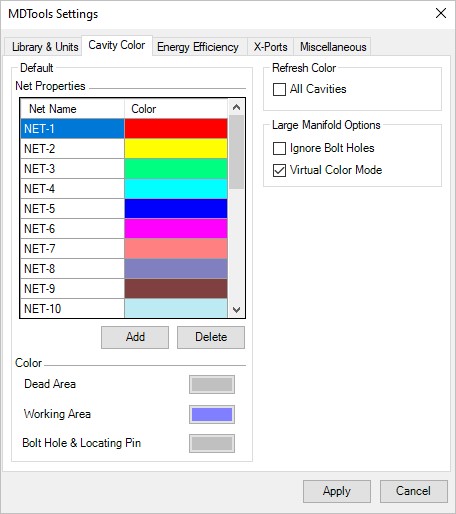

Cavity Color

Default Net Properties

Default Nets

View the default name and color of pre-defined nets (flow paths)

Add a Net

Click Add.
Change the default net name assigned by clicking the newly added net name

Delete a Net

Select a net from the list and click Delete.

Change Net Color

Click the color band against a net name to change the color of the net name.
Click Apply to save settings.



Color

Dead Area

Sets the color for the dead areas in the cavity

Working Area

Sets the default color of the working areas in the cavity

Bolt Hole & Locating Pin

Sets the default color for Bolt Hole & Locating Pin of a footprint



Refresh Color

All Cavities

Automatically updates the color of all the cavities in the manifold. Deselect to update the color of only modified cavity.



Large Manifold Options

Ignore Bolt Holes

Select Ignore Bolt Holes to ignore Coloring in Bolt Holes

Virtual Color Mode

Select Virtual Color Mode for Virtual Coloring in Feature design
