Process all the drawing views in the active sheet and
display the internal details for the drawing views.
If the drawing is opened and the part is modified, then the part file is
to be saved and closed, before running this command.
Ensure that you always save the Part file before running the Show Internal
Details command.
MDTools 785 ribbon > Internal Details panel > Show
The MDTools® program processes all the drawing views in the active sheet and displays the internal view details in the drawing views.

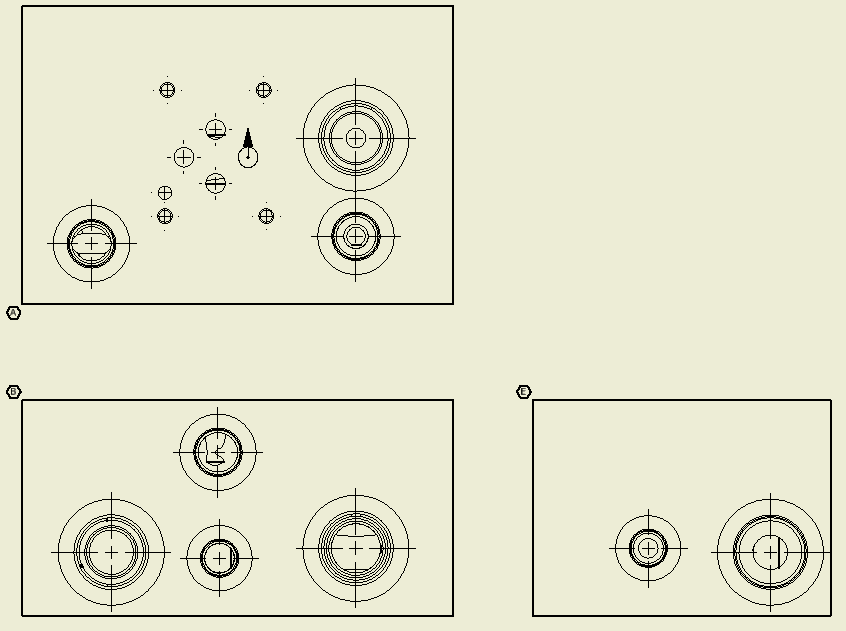

MDTools: 2D Drawing Views
Limitations: Show Internal Details
After using the Show Internal Details command some of the MDTools 785 commands will not work properly for the processed sheet.
To avoid this, use the command after completion of the all machining drawing process.
If the part document is modified, then the changes will not be reflected automatically.
Re-run the program to update the hidden view details.
An additional part document is created with the same name as the part document name suffixed with “_Internal”.
Do not delete this file.

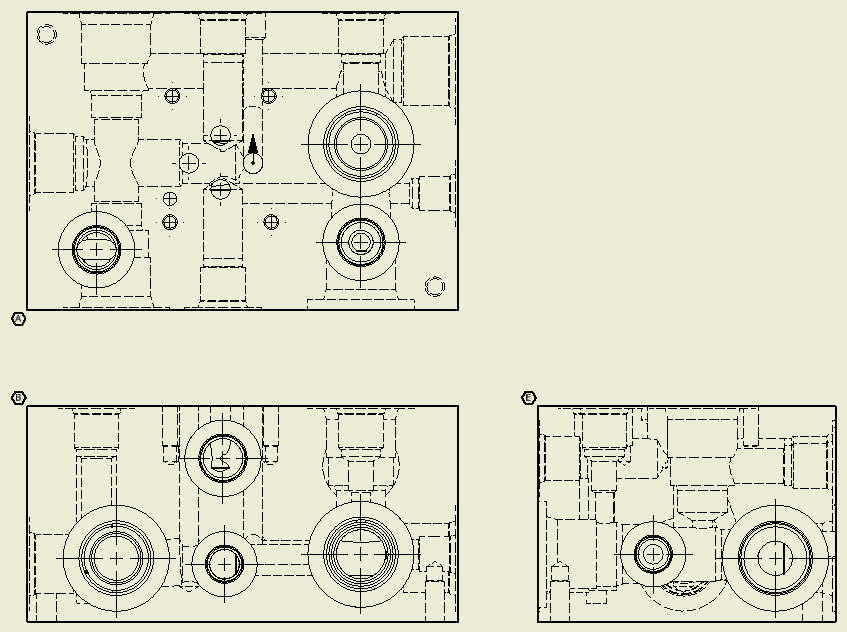

MDTools 785: 2D Drawing Views with Internal Details
