Automatically display the engravings near cavities in
the 2D drawing views.
Engraved text is displayed at specified locations when you create the engraved
text in the Part model.
MDTools 785 ribbon > Display panel > Engraved Text
MDTools®
displays the engraved texts with the enclosed box near the cavity.
All the engravings and enclosed boxes except the engraved text in a view
is created inside a single sketch.
All the engravings and enclosed boxes in a view move together when you
drag the view position.
Drag the engraving to the desired location.
You cannot move the engraved text.

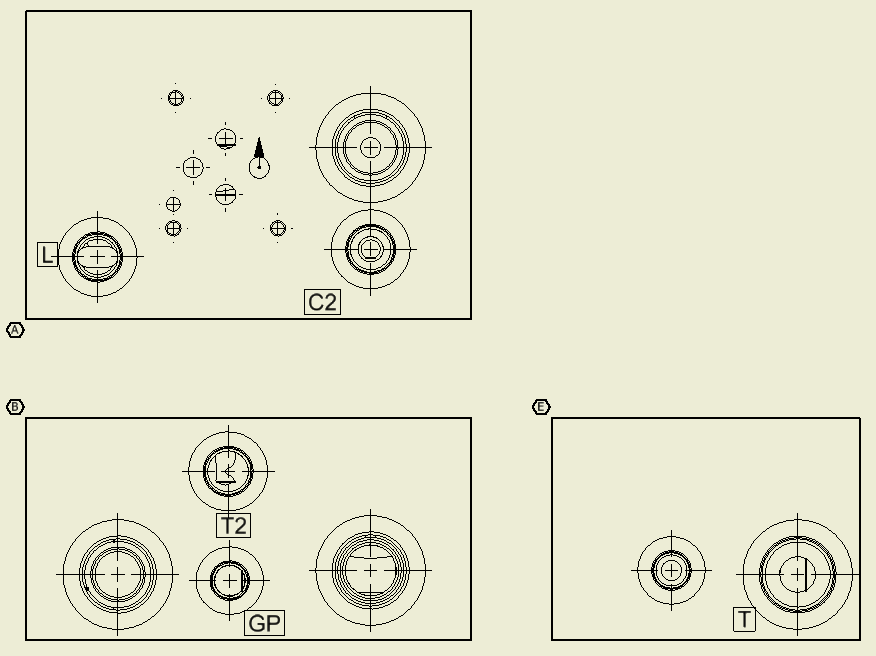

Engraved text with enclosed box displayed in the 2D drawing
Note
If 2D views are created manually, then use the following naming convention for the manifold views.
Top A
Front B
Bottom C
Left D
Right E
Back F
The Engravings
command will not work, if you do not use the view names,
per naming conventions.
