The engraving is aligned in three ways:
- Same face – shortest distance alignment
- Perpendicular face – common axis alignment
- Opposite face – point to point alignment
The left-bottom corner of the textbox is used as a reference point for
all alignment calculations.
When Text 1 and Text 2 are on the same face, then the shortest distance is calculated.
If the vertical distance is shorter than the horizontal distance, then the text is vertically aligned.
If the horizontal distance is shorter than the vertical alignment, then the text is horizontally aligned.
The relocation of Text 2 is shown in dotted lines.

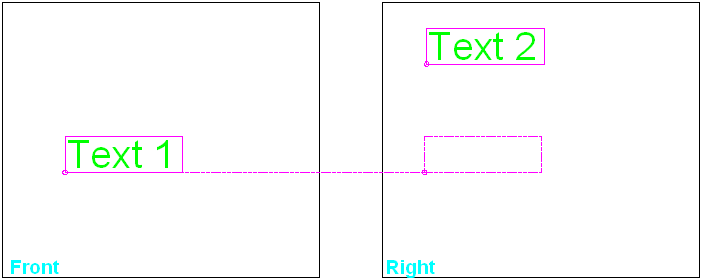

When Text 1 and Text 2 are on perpendicular faces, then Text2 is aligned with Text1 on the common axis of both faces.
The relocation of Text 2 is shown in dotted lines.

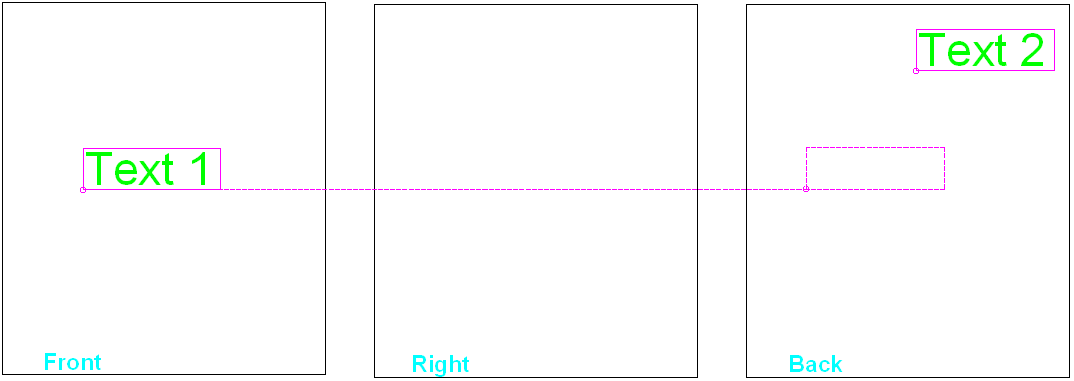

When Text 1 and Text 2 are on opposite faces, then Text2 is aligned with the reference point of Text1.
The relocation of Text 2 is shown in dotted lines.
