Locate a position or an area on a selected manifold face, where a cavity can be placed to connect with the selected net.
MDTools® displays cavities/ports in the selected net in green and all the other cavities/ports in the Dead Area color.
1. MDTools 775 ribbon > View panel > Net

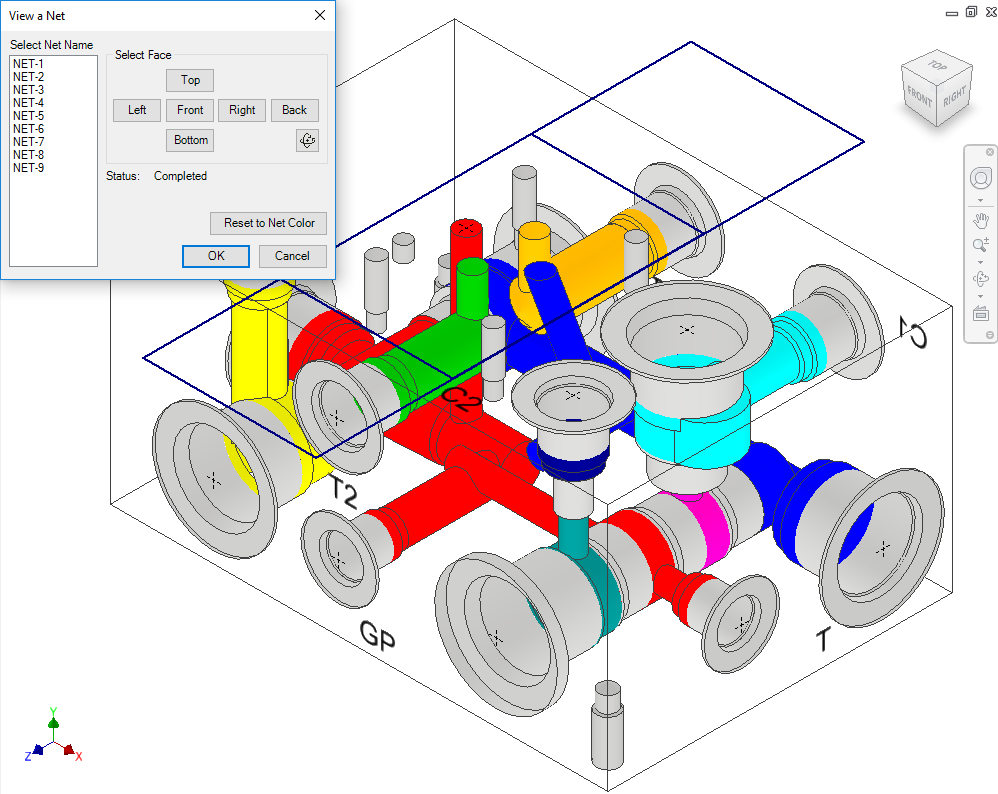

The View a Net dialog box displays with the list of nets in the manifold.

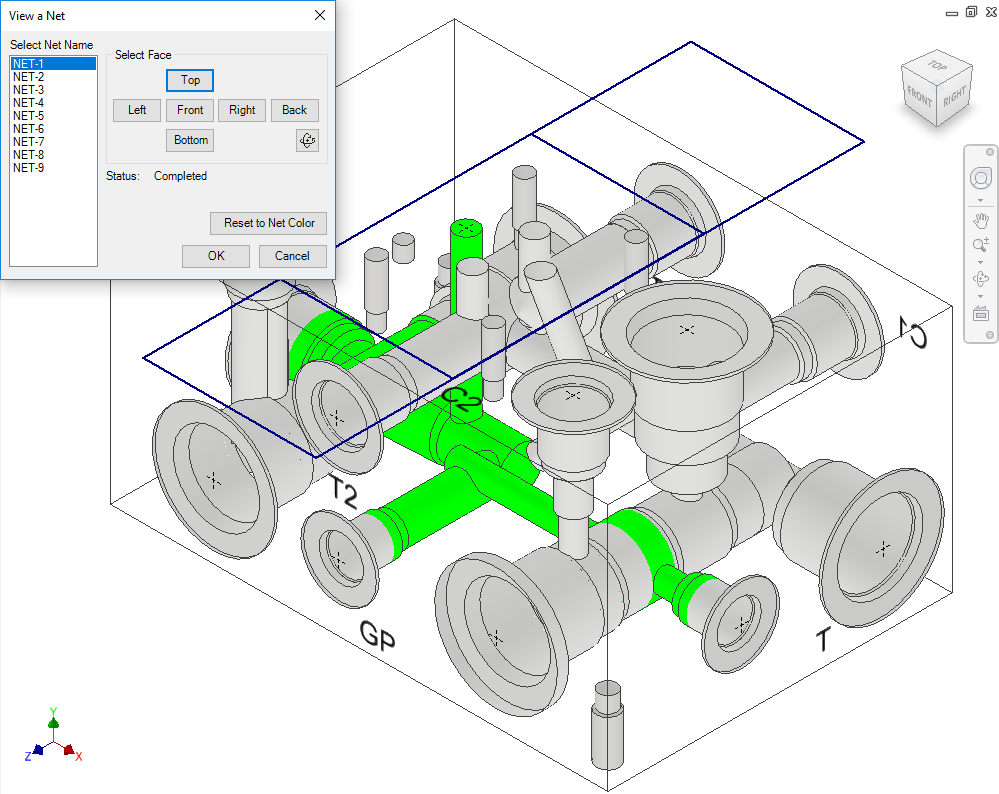

2. Select the net from the Select Net Name list.
MDTools displays the area in the selected net in green, and all other nets and dead areas of cavities in the default color for Dead Area.
The default color for Dead Area can be changed through MDTools Settings > Net Display.
3. Select
the face, where you want to place a cavity to connect to the selected
net:
Top, Bottom, Left, Right, Front, or Back.
MDTools displays the selected manifold face parallel to the screen.
Note
§ Use the Rotate button to rotate the block.
§ Click Reset to Net Color to revert to your default color settings for Nets.
§ Default colors are the colors assigned to the nets in MDTools Settings > Net Display.
