Update Precision

Change the precision for cavity location, drill depth, and angle value of angle holes.

MDTools 775 ribbon  >  Modify panel  >  Update Precision

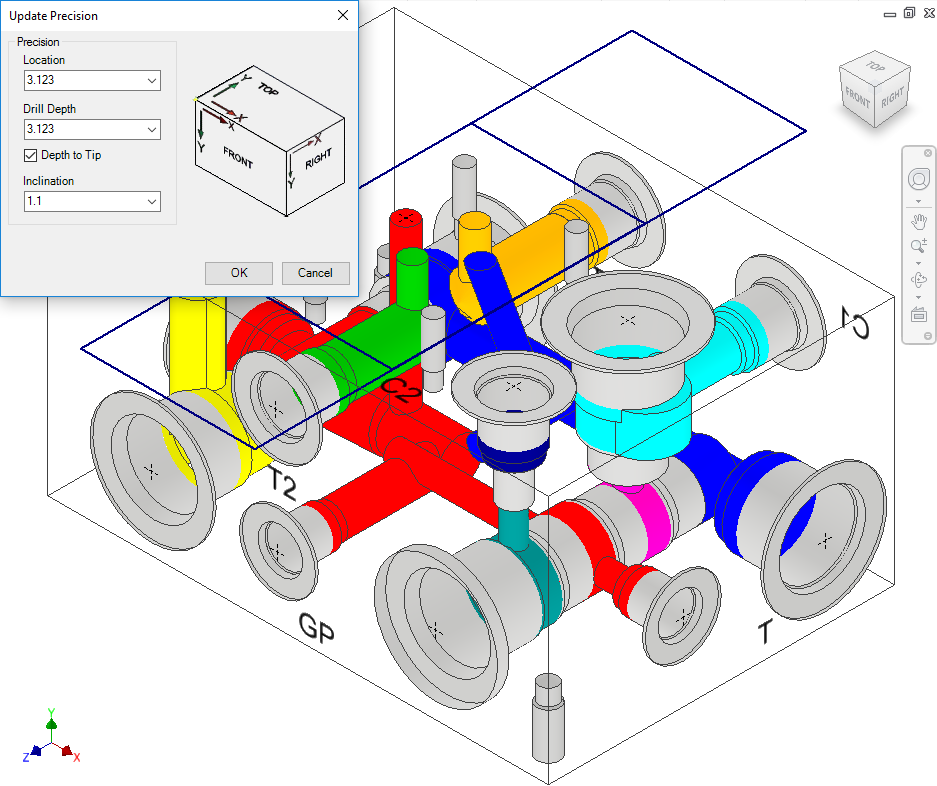

The Update Precision dialog box displays.

Location Precision

Select the desired location precision from the drop-down list.

Drill Depth Precision

Select the desired drill depth precision from the drop-down list.

Note

Select the Depth to Tip precision, as required.

Inclination Precision

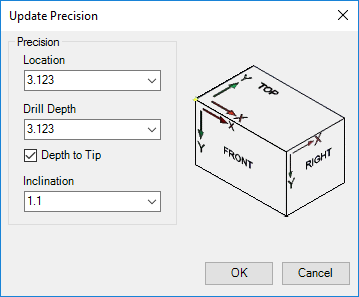

Update Precision dialog box

1.      Select the desired angle precision from the drop-down list.

2.      If you don’t want to change any of the mentioned precision values, use the default Do Not Change option.

3.      Click OK.

MDTools^® updates the location, drill depth and angle values (both Alpha and Beta) of all the cavities.

CAUTION!

If you use a cavity location precision value of less than 3.123, then the holes connecting the side ports of cartridge valve cavities may cut outside the port area.

Note

§  When you apply Location precision, cavities are relocated with respect to the default coordinate system.

§  In case of footprints, MDTools applies Location precision on the cavity marked as ‘Dimension from This Cavity’.

§  When updating the location, MDTools relocates the complete footprint, and the relative distance between the cavities in the footprint remains the same.

§  Update Precision, also changes the default MDTools Settings Precision.
