Toggle the visibility of component assembly outlines and footprint outlines on the manifold.
1. MDTools 775 ribbon > View panel > Outline

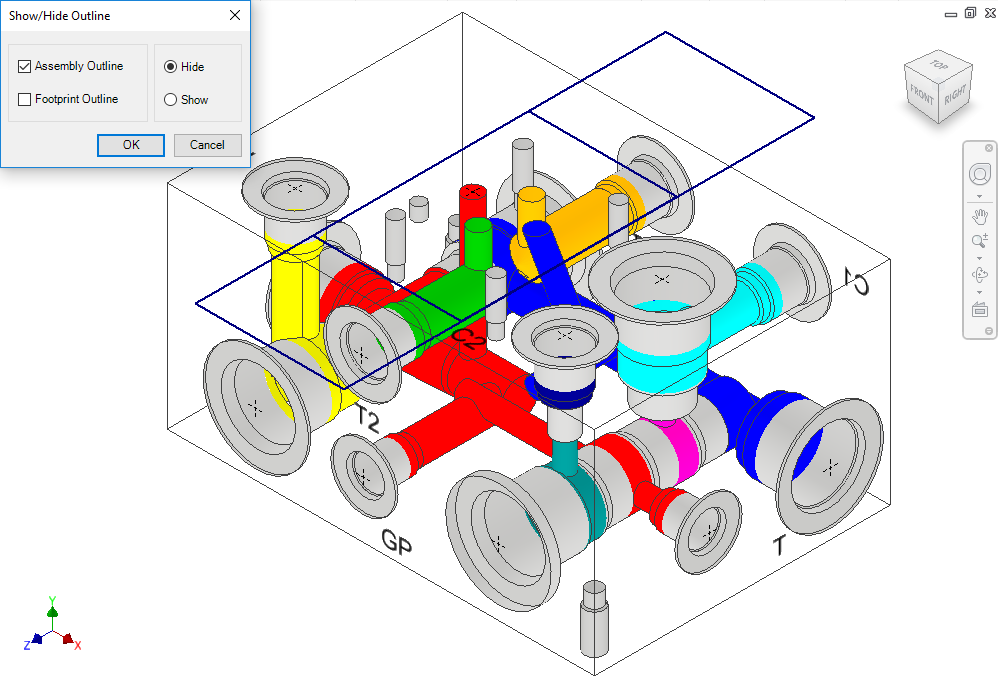

The Show/Hide Outline dialog box displays.
2. Select the type of outline required.
Both the Assembly Outline and Footprint Outline options are selected by default.
3. Select the display option.
To turn off the visibility, select the Hide option, else
select the Show option.
Show is the default state.
4. Click OK.

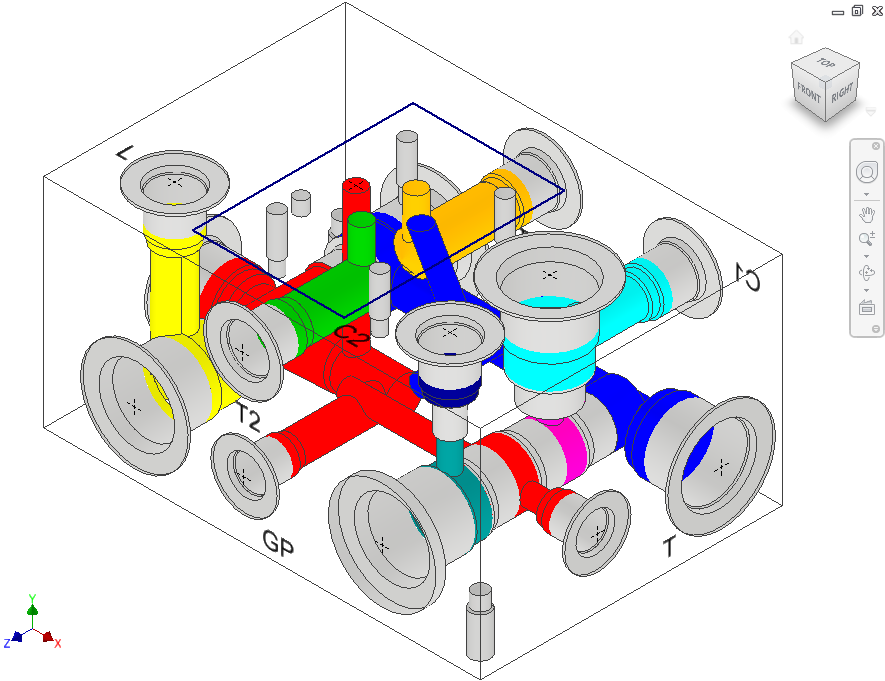

If the Hide option is selected, then MDTools® turns off the visibility of the entire selected outline types on the manifold, else all the outlines are visible.
