The Cavity ID command displays the Cavity ID
at the center of a cavity. Easily identify the cavity on the manifold.
Show or hide cavity IDs on the selected faces or the selected cavity.
1. MDTools 775 ribbon > View panel > Slide out menu > Cavity ID

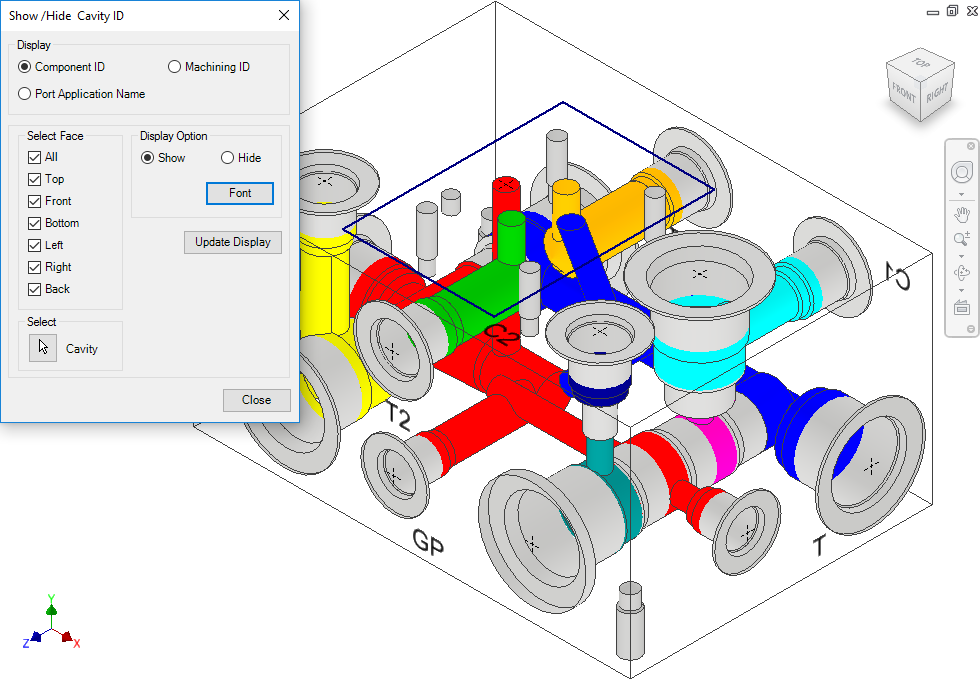

The Show/Hide Cavity ID dialog box displays.
2. Select the display option.
Component ID is selected by default.
3. Select the faces.
Front and Top faces are selected by default. Select the All option to display the cavity IDs of all the cavities on the manifold.
4. Select the Show or Hide option.
The Show option is selected by default. Select the Hide option to hide the cavity ID.
5. Click Font Style to change the font style.
The Font dialog box displays with default styles.
Font Arial
Style Regular
Size 16
Color Black
Change the font properties, if required.
6. Click Update Display.
MDTools® displays the cavity ID on the cavity center.
