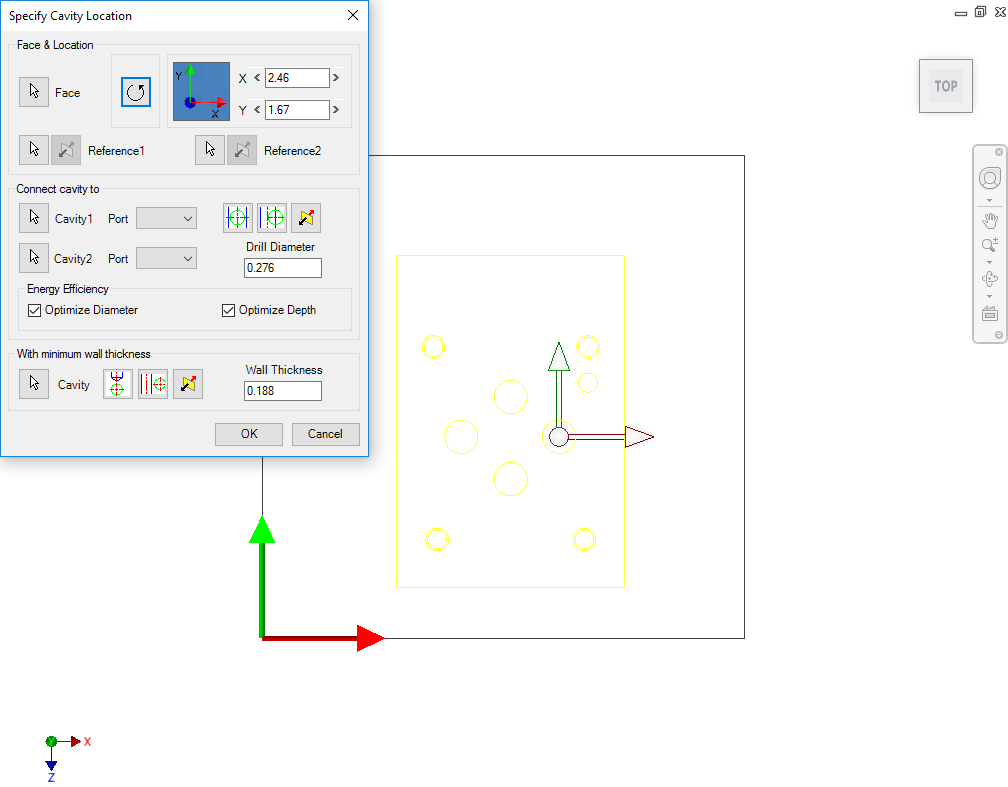

The Rotate Footprint option in the Specify Cavity Location dialog box enables you to specify the rotation of a new footprint.
Click the Rotate Footprint button -
- Once to rotate the footprint by 90 degrees.
- Twice to rotate the footprint by 180 degrees.
- Three times to rotate the footprint by 270 degrees.
MDTools® rotates
the footprint in the counter clockwise direction.
