Switch nets (flow path) color display between ‘on’ or
‘off’.
You can also change the color of nets inside the manifold.

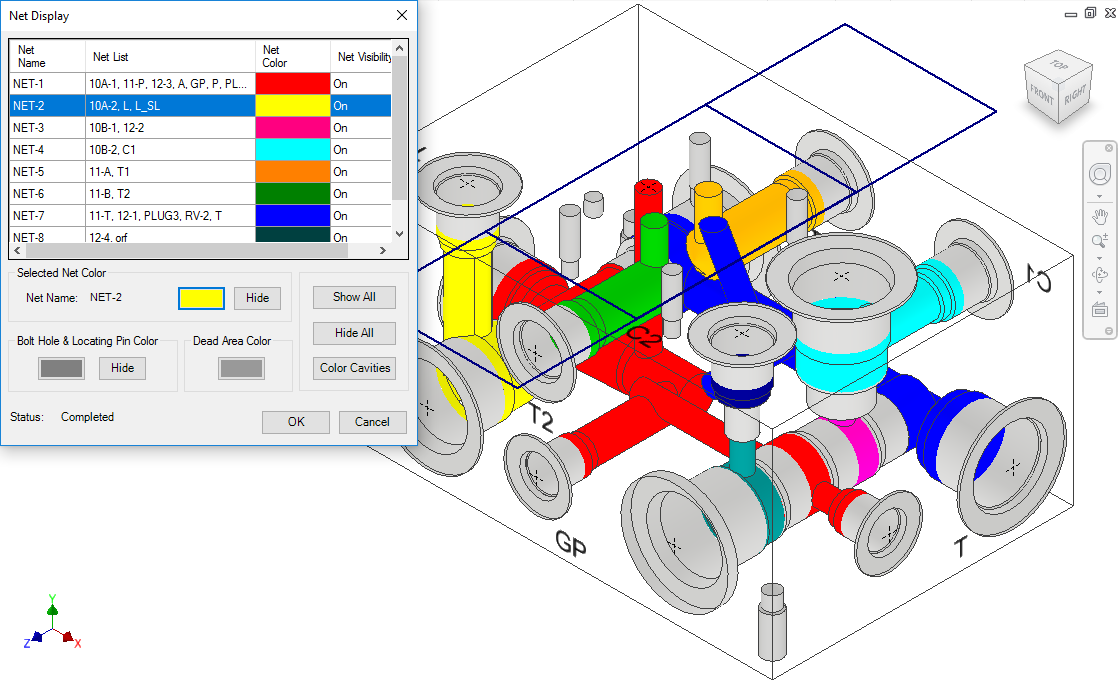

MDTools 775 ribbon > View panel drop-down > Net Display
The Net Display dialog box displays.
MDTools®
automatically assigns default colors for all the nets.
Net visibility shows the ‘on’ or ‘off’ status of the net.
