Precisely relocate a cavity by specifying the X and Y values from the face origin. You can also move the cavity by entering displacement values delta X, and delta Y.
1. MDTools 775 ribbon > Relocate panel > Move
The Select Cavity dialog box displays.
2. Select a cavity on the manifold.

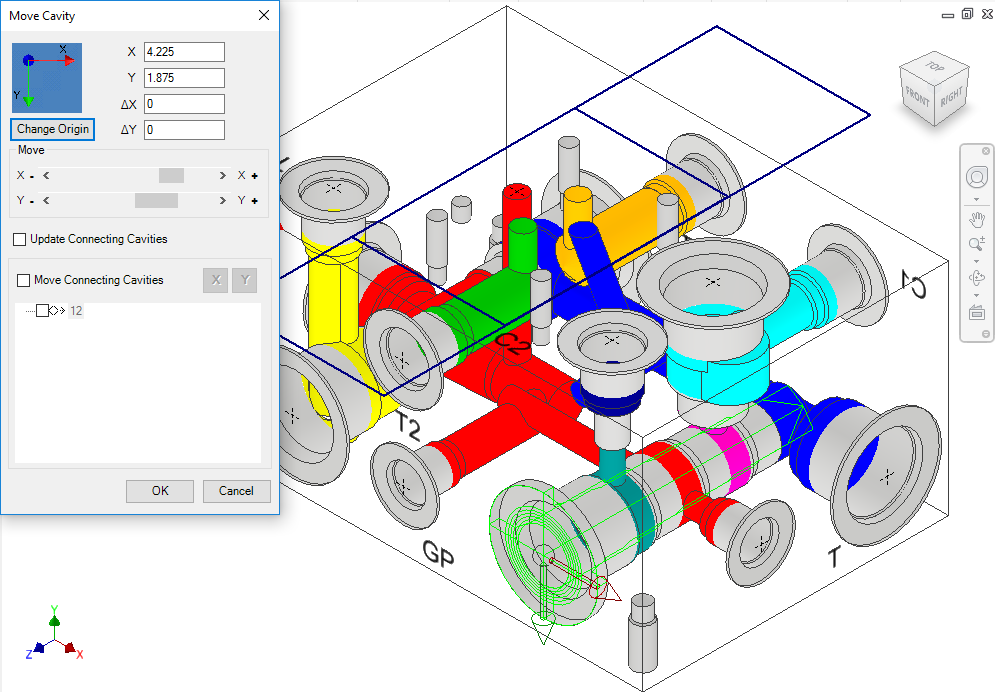

The Move Cavity dialog box displays.
MDTools®
displays the origin indicator on the manifold face.
Current X and Y values of the cavity location from the face origin are
displayed in the dialog box.
If a cavity is selected on a footprint, then the location of the Primary
cavity on the footprint is displayed.
