Measure the distance between two cavity surfaces or measure the distance between a cavity and a manifold surface.
1. MDTools 775 ribbon > Check panel > Measure

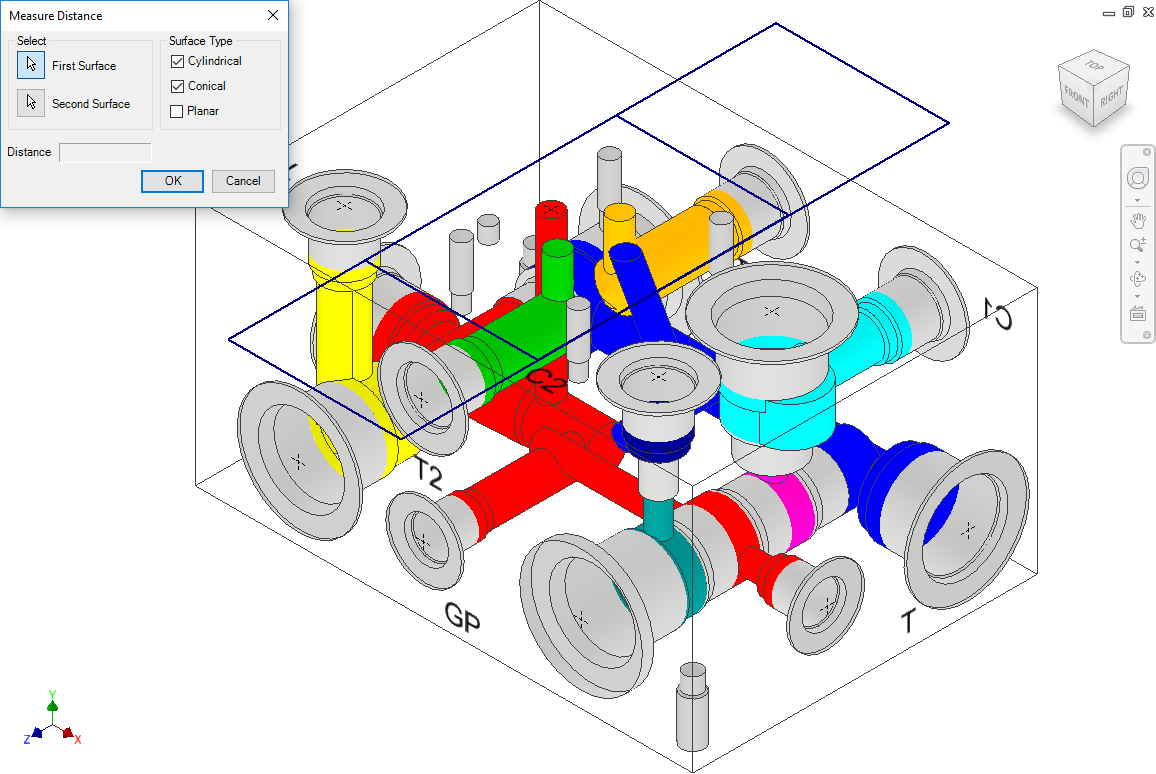

The Measure Distance dialog box displays.
2. Click the First Surface selection button.
Select the required type of surface: Cylindrical/ Conical/ Planar
3. Select the Second Surface.
Select the required type of surface

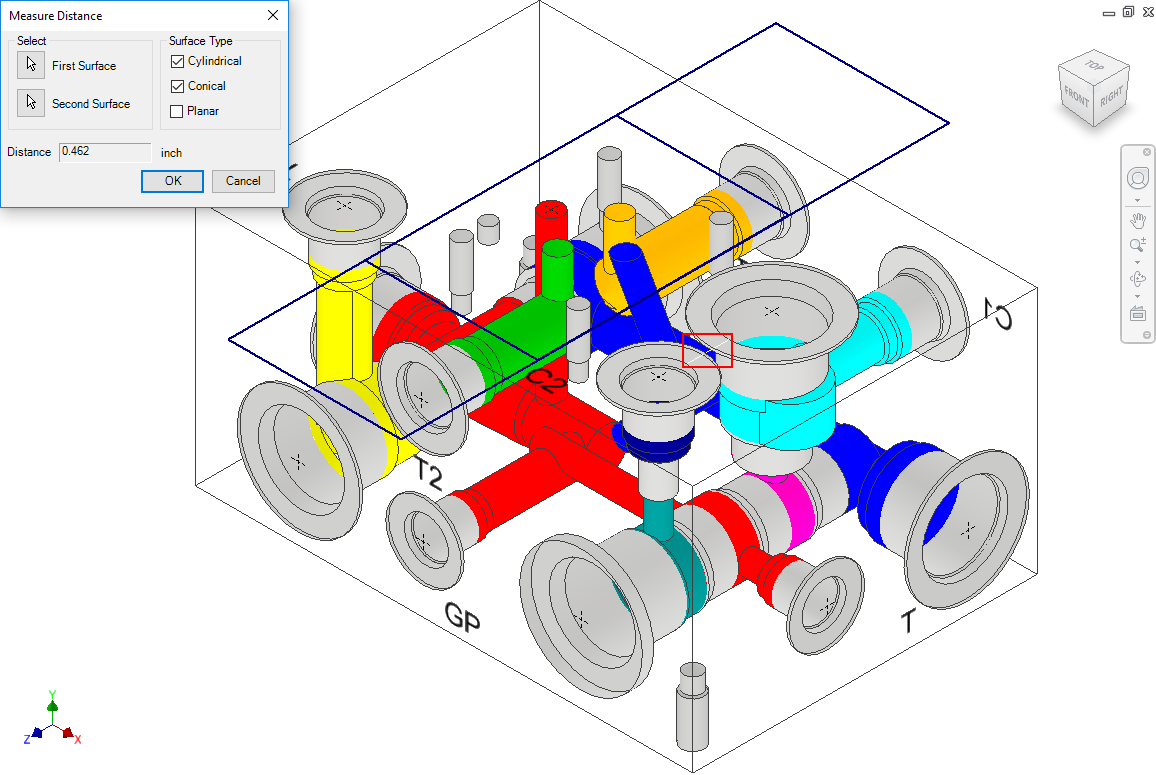

MDTools® displays the minimum distance between the selected surfaces on the dialog box.
