Match the properties of two or more cavities. You can match drill diameter, drill depth, drill tip angle, spot face/LS depth, cavity inclination (Alpha and Beta), net name, and cavity machining information.
1. MDTools 775 ribbon > Modify panel > Match Properties
The Select Cavity dialog box displays.
2. Select the source cavity.
3. Select destination cavities.
4. Click OK.

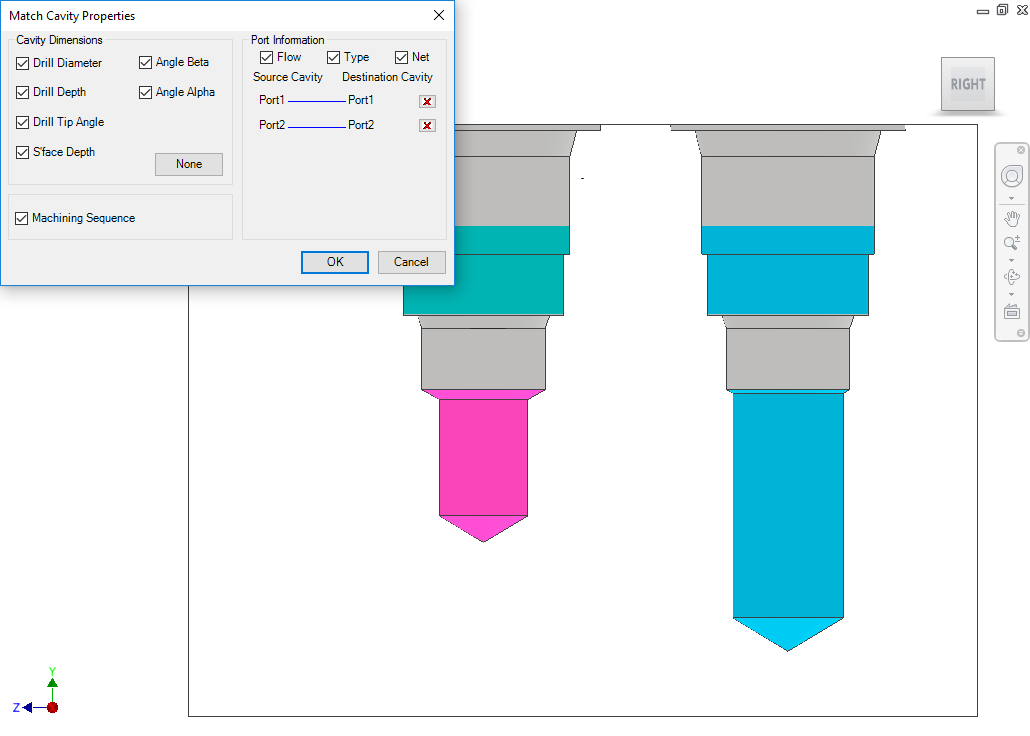

The Match Cavity Properties dialog box displays.
5. Select properties you want to match.
6. Click OK.

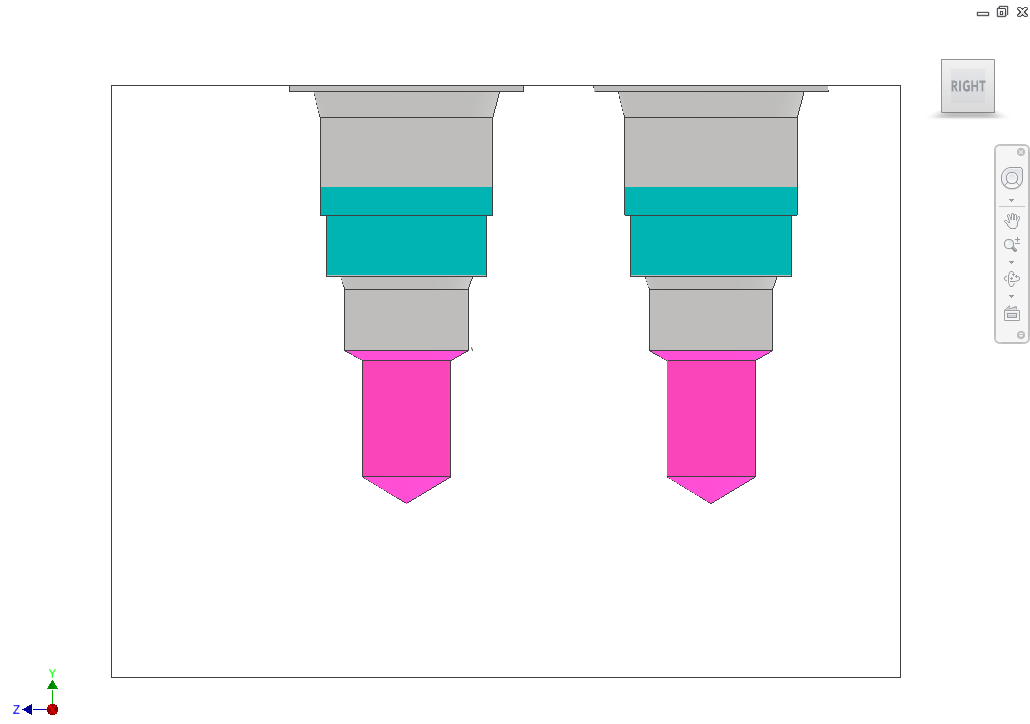

MDTools® updates the selected properties of destination cavities with that of the source cavity.
Cavity properties matched
1. Click the source cavity port: For example, Port1 Net.
2. Click the destination cavity port: For example, Port2 Net.
MDTools displays a line connecting the selected ports to match the net names.
3. Click
to delete the selection.
