Delete an assembly envelope around selected cavities/footprints that are created using the Insert Outline command.
1. MDTools 775 ribbon > Modify panel > Delete Cavity drop-down > Delete Outline

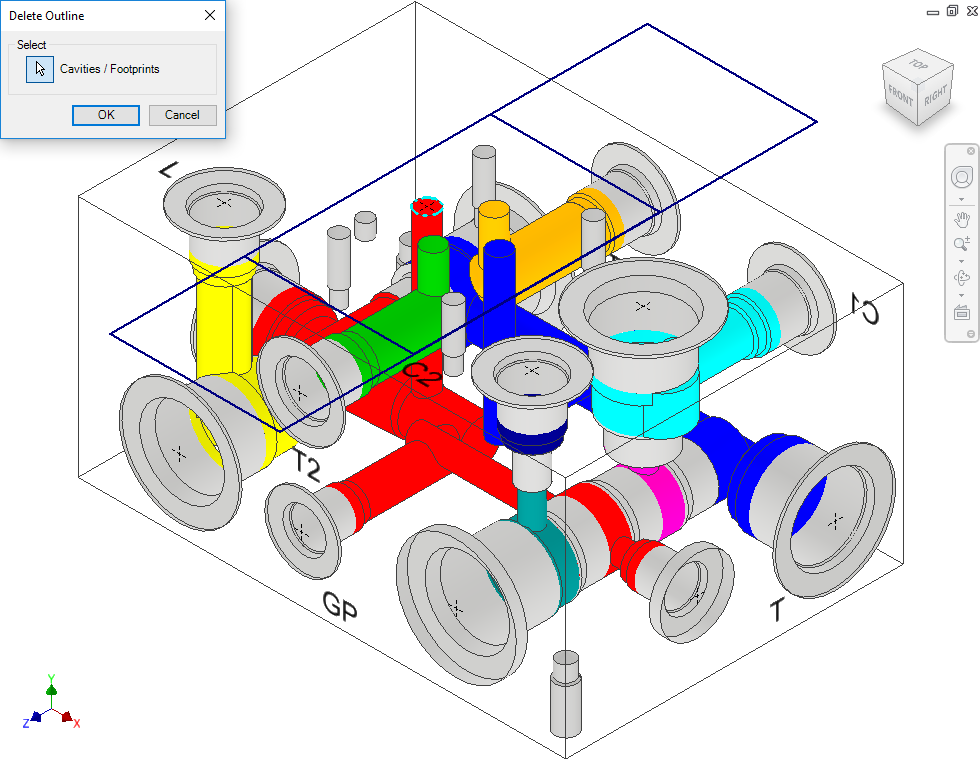

The Delete Outline dialog box displays.
2. Select the cavities/footprints from which you want to delete the outline.
3. Click OK.
MDTools® automatically deletes the outlines around the selected cavities/footprints.

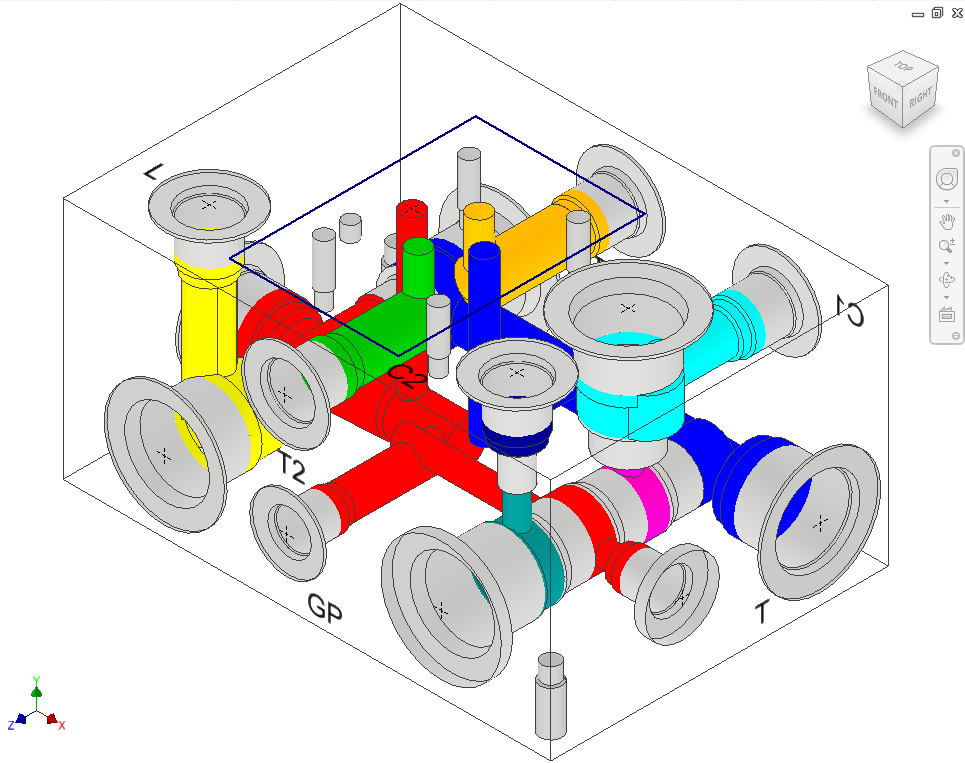

Assembly envelope automatically deleted
