All features used to create an O-ring are automatically removed on deleting the O-ring groove.
1. MDTools 775 ribbon > Modify panel > Delete Cavity drop-down > Delete O-ring Groove

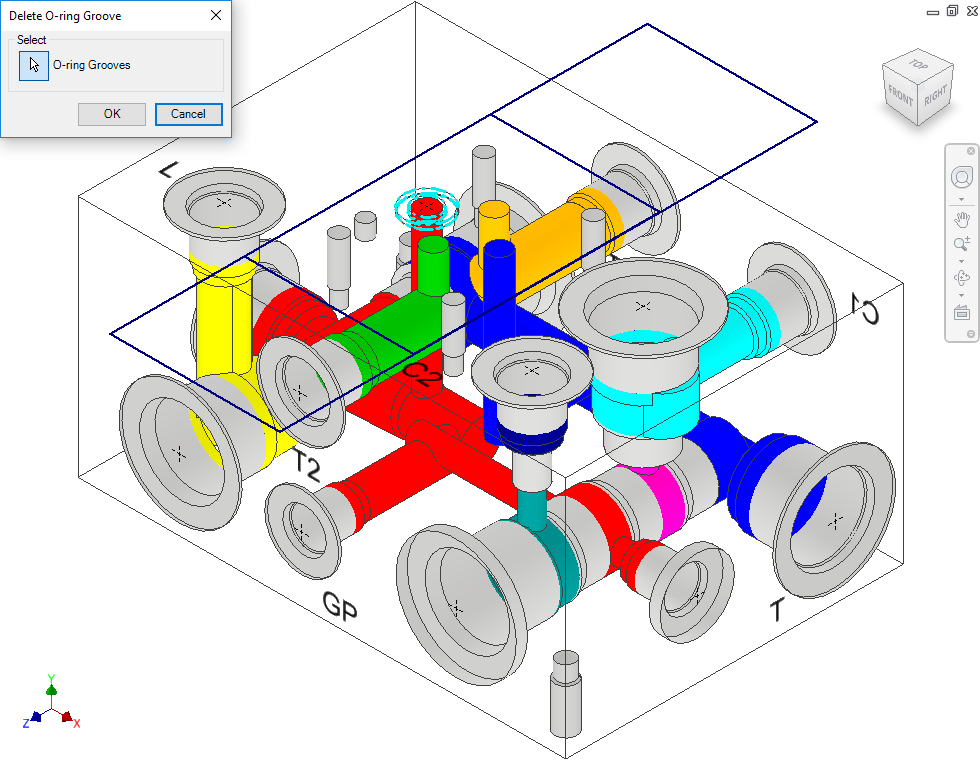

The Delete O-Ring Groove dialog box displays.
2. Select all O-ring grooves you want to delete.
When you move the cursor over an O-ring groove, it gets highlighted.
3. Click OK.

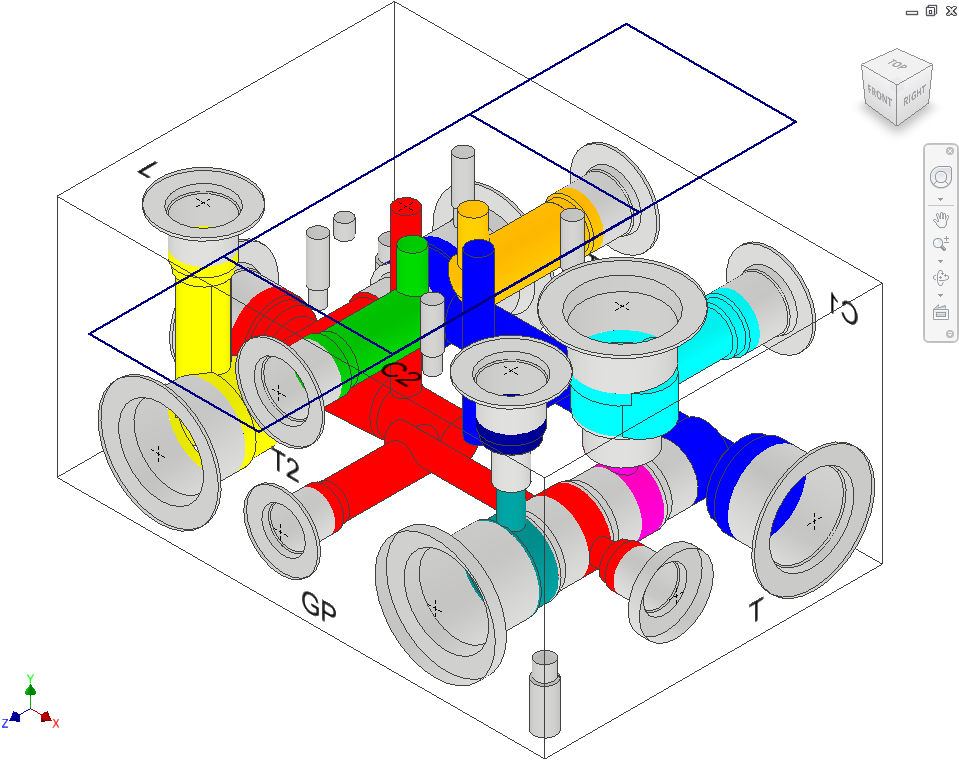

MDTools® deletes all the selected O-ring grooves along with the features used to create the O-ring groove inside the Inventor.
Note
§ Mandatory O-ring Groove can also be deleted using Delete O-ring Groove.
