The MDTools® cavity consists of multiple Inventor features; the Delete Cavity command enables you to automatically delete the complete cavity/footprint. All the features used to create the cavity/footprint are automatically deleted.
1. MDTools 775 ribbon > Modify panel > Delete Cavity drop-down > Delete Cavity

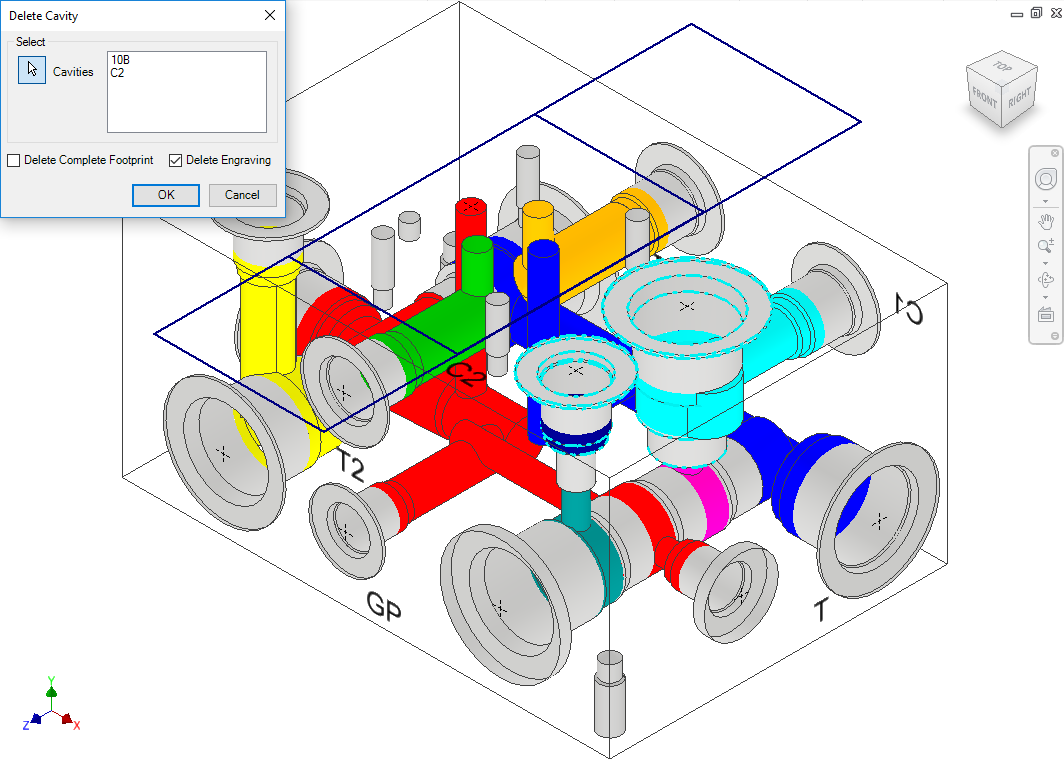

The Delete Cavity dialog box displays.
2. Select cavities/footprints you want to delete.
When you move the cursor over a cavity, it gets highlighted. This indicates the selected cavities/footprints for deleting.
3. Click OK.
MDTools deletes all the features used to create cavities/footprints in Inventor along with engravings, if selected.
Note
§ If you select Delete Complete Footprint, then the complete footprint is deleted.
§ Footprint engravings are deleted only when the Delete Complete Footprint option is selected.
To delete a single cavity from a footprint, use the Delete Cavity option on the MDTools Cavities browser context menu.
1. Select the cavity from the MDTools Cavities browser.
2. Right-click the selected cavity.
The context menu displays.
3. Click Delete Cavity from the context menu.
MDTools deletes the selected cavity from the footprint.
