Create multiple copies of the selected engravings on the manifold at a specified distance from the location of the selected texts. Various properties of the selected texts also get copied.
1. MDTools 775 ribbon > Engravings panel drop-down > Copy

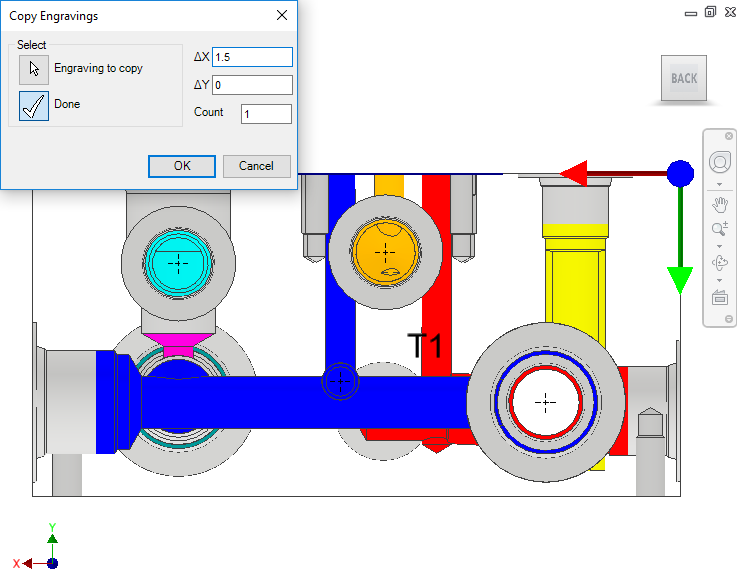

The Copy Engravings dialog box displays.
2. Select Engraving to copy, and then click the Done button.
After clicking Done, the ΔX, ΔY and count appears.
3. Enter values for ΔX and ΔY.
4. Enter Count to set the number of copies.
5. Click OK to create the copies of the selected engravings.

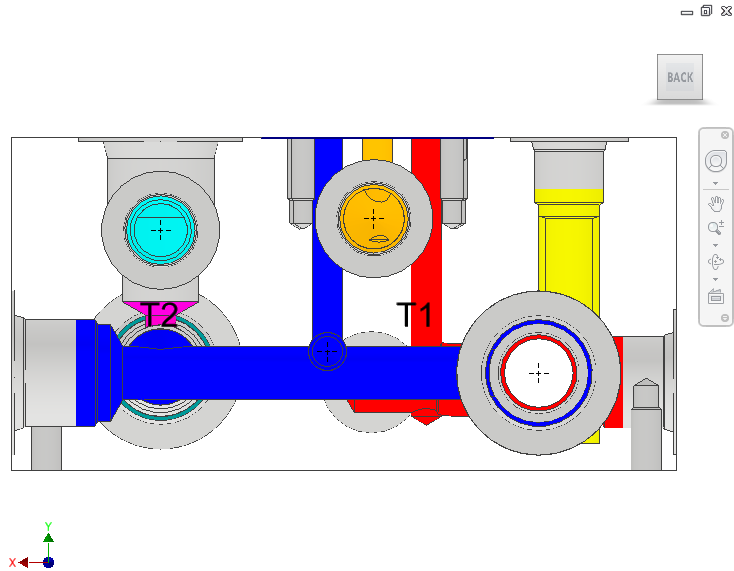

Engravings copied
Note
§ If the last character is a number, then the newly copied text automatically increments the count.
§ If the last character is a letter or a special character, then MDTools® appends a number at the end, then increments that number by the count.
