Align multiple cavities on the manifold.
When you align cavities on the same face, the cavities are aligned to the
coordinate with the shortest distance.
When you align cavities on two perpendicular faces, the cavities are aligned
with reference to the common coordinate.
1. MDTools 775 ribbon > Relocate panel > Align

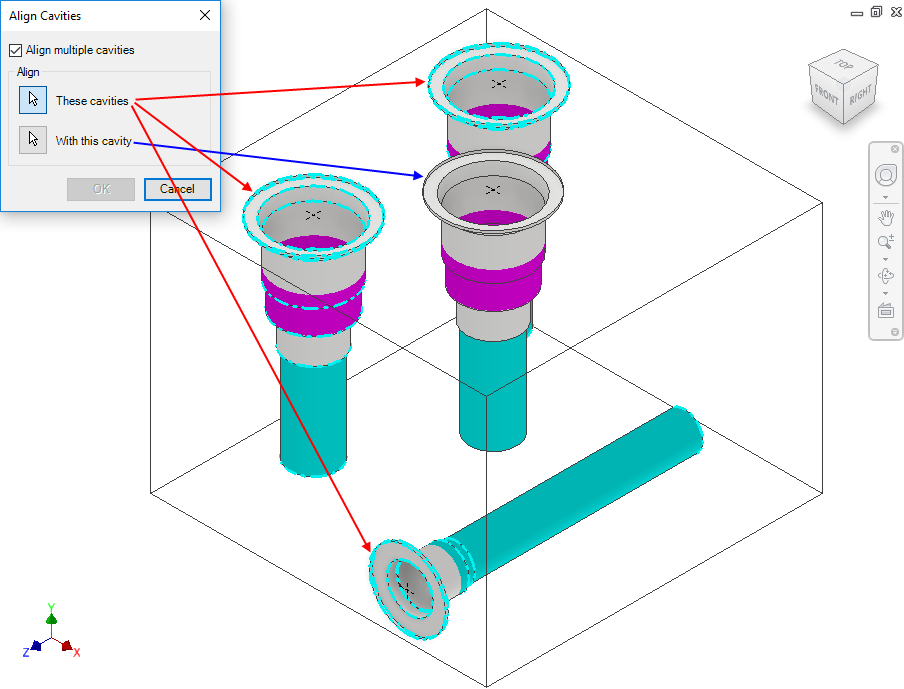

The Align Cavities dialog box displays.
2. Select Align multiple cavities option, if you want to align multiple cavities. Else, a single cavity is selected.
3. These
cavities:
Select the cavities you want to move and align with another cavity.
4. With this
cavity:
Select the cavity with which you want to align the selected cavities.
5. Click OK.

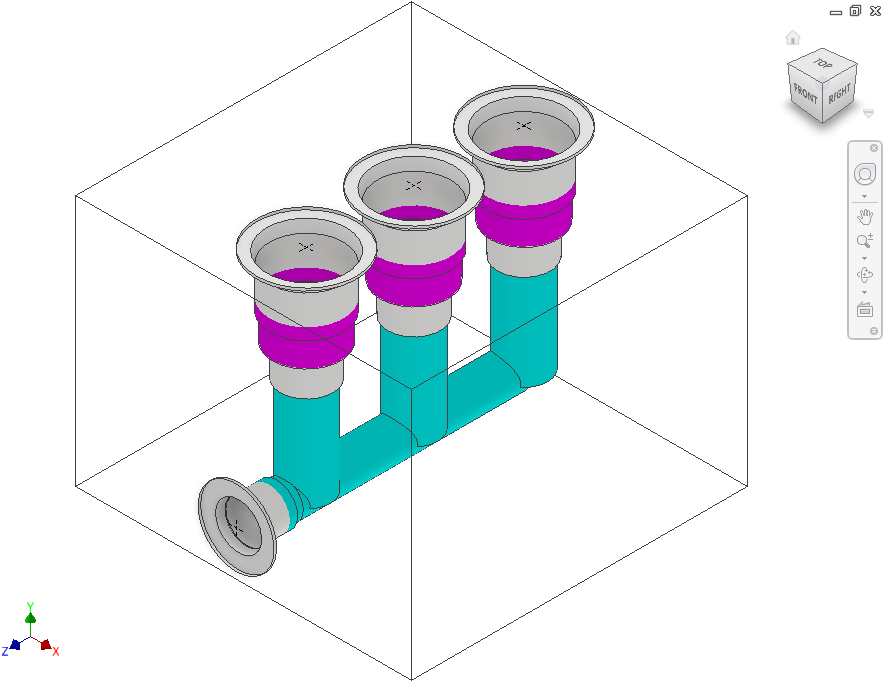

MDTools® automatically relocates the selected cavities to align with the selected cavity.
Note
When you align cavities on opposite faces, cavities are aligned to both the common coordinates.
